Flywheel: Service and Repair

Flywheel

Lower End Components - Exploded View, Flexplate, Flywheel and Crankshaft Rear Seal (Part 1):

Lower End Components - Exploded View, Flexplate, Flywheel and Crankshaft Rear Seal (Part 2):

Removal
1. Remove the clutch.
2. Remove the 6 flywheel bolts.

3. CAUTION: The flywheel has a pressed fit on the crankshaft pilot. Do not use screwdrivers or prybars to remove the flywheel or damage to the flywheel or engine may occur.

Remove the flywheel.

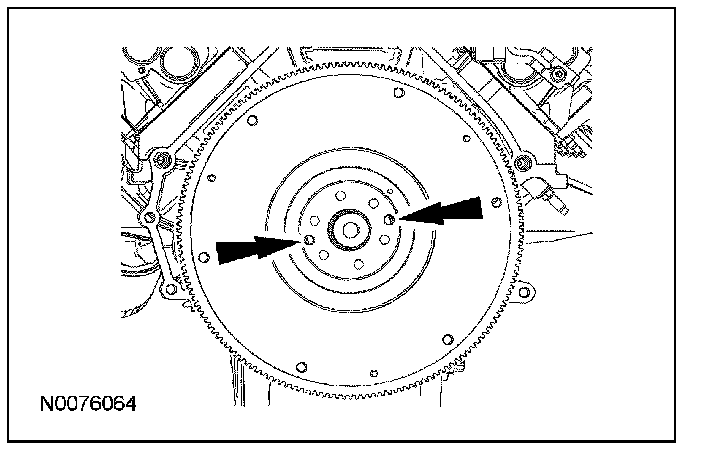

^ Install 2 of the removed flywheel bolts in the 2 holes shown on the flywheel flange.
^ Tighten the 2 bolts evenly to push the flywheel off the crankshaft pilot.





Installation
1. Position the flywheel on the crankshaft pilot and start the 6 flywheel bolts.

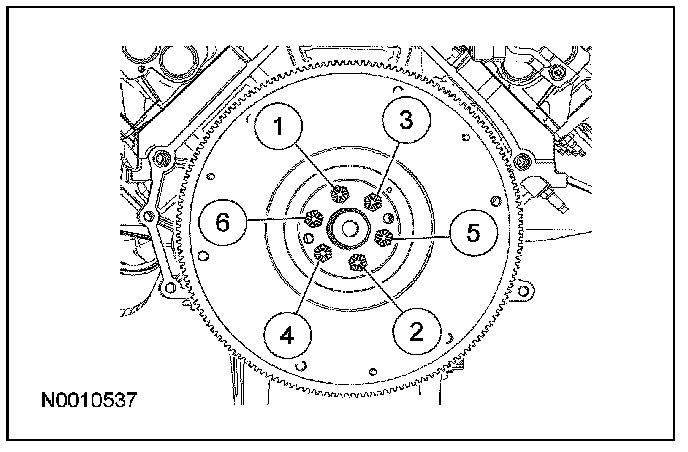

2. Tighten the flywheel bolts evenly in the sequence shown to fully seat the flywheel on the crankshaft pilot.
^ Tighten to 80 Nm (59 lb-ft).
