Entertainment System Control Module
Entertainment System Control Module

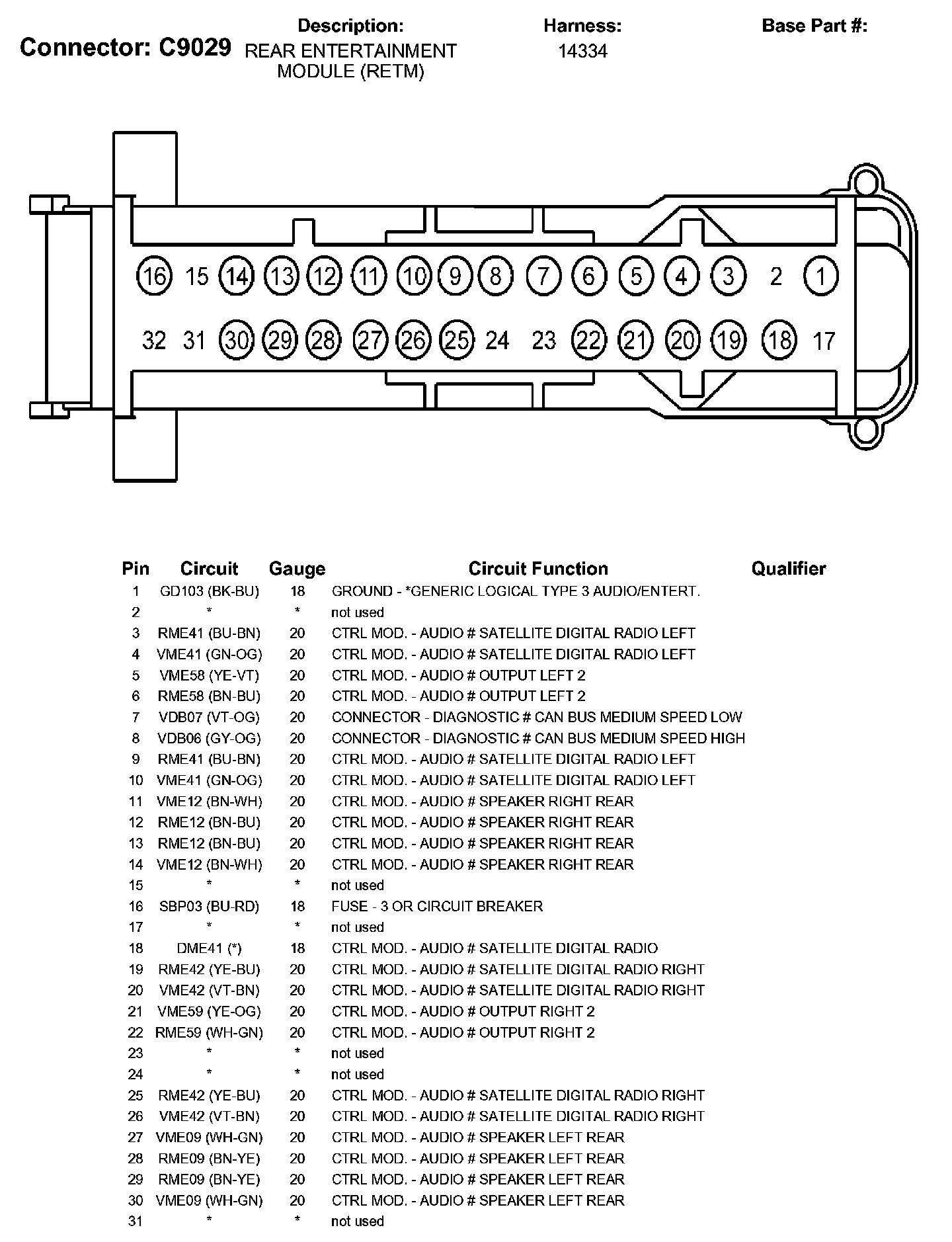

C9029 (part 1):
C9029 (Part 2):
