Connector Views
>>
Power Seat Switch
>>
Seat Control Switch, Driver Side Front
Seat Control Switch, Driver Side Front
C360:

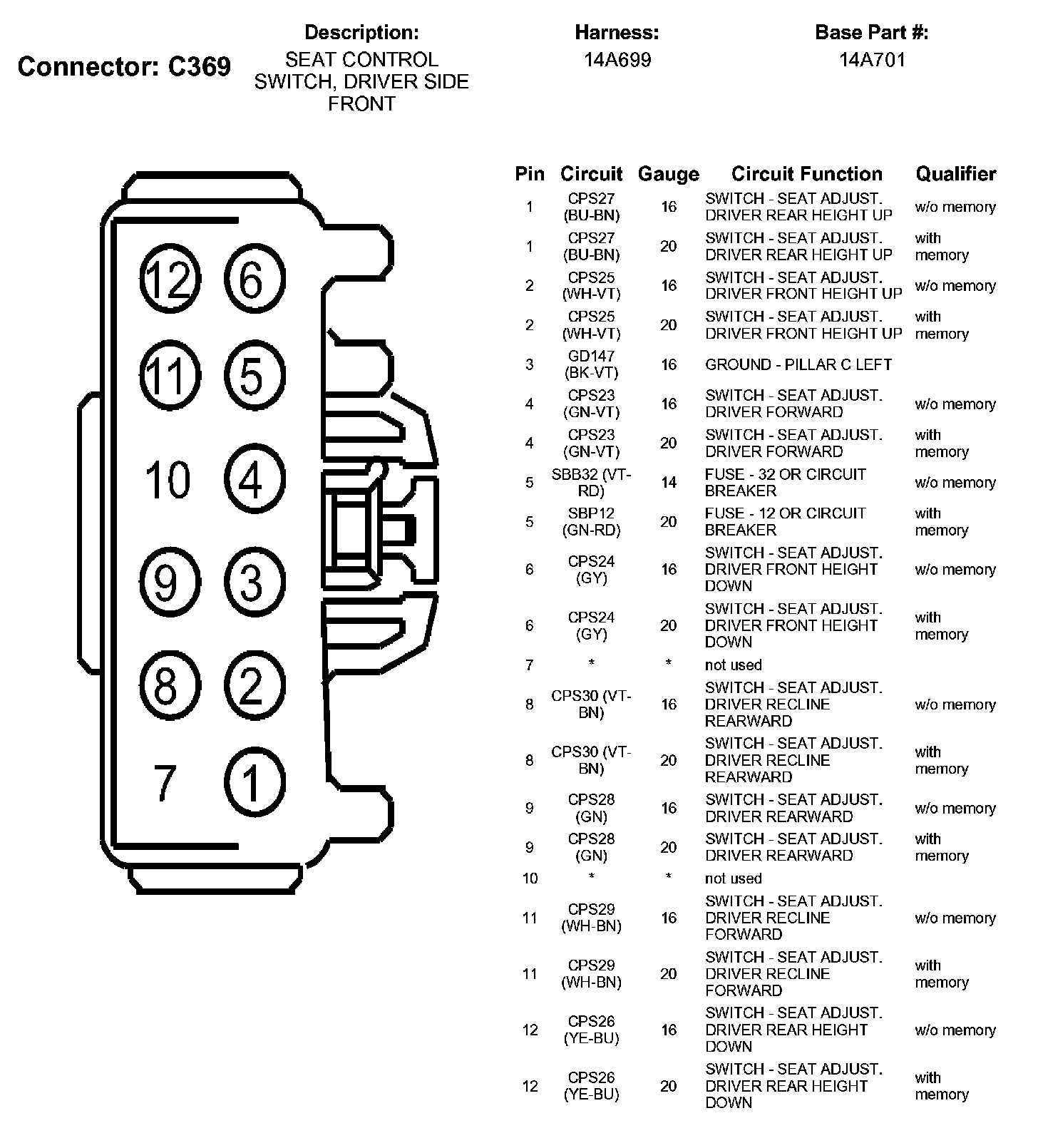

C369:
