Transmission Mode Switch: Testing and Inspection

Electrical Connectors

Selector Lever Harness C3245 (Vehicle Harness Side)

Selector Lever Harness C3245 (Vehicle Harness Side) (Part 1):

Selector Lever Harness C3245 (Vehicle Harness Side) (Part 2):

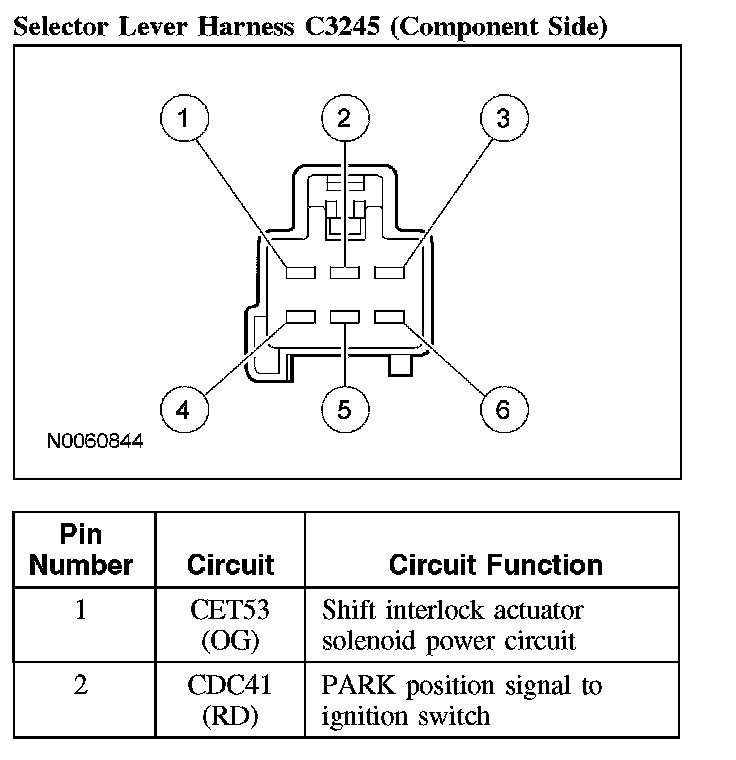

Selector Lever Harness C3245 (Component Side)

Selector Lever Harness C3245 (Component Side) (Part 1):

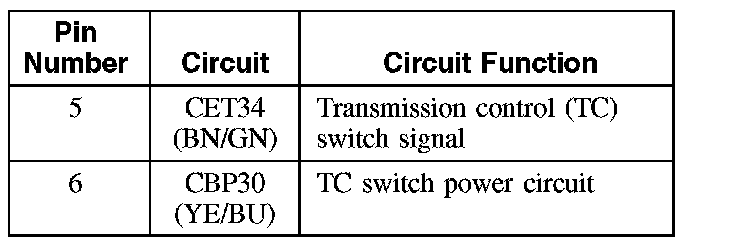

Selector Lever Harness C3245 (Component Side) (Part 2):
