Rear Bumper: Service and Repair

Bumper - Rear

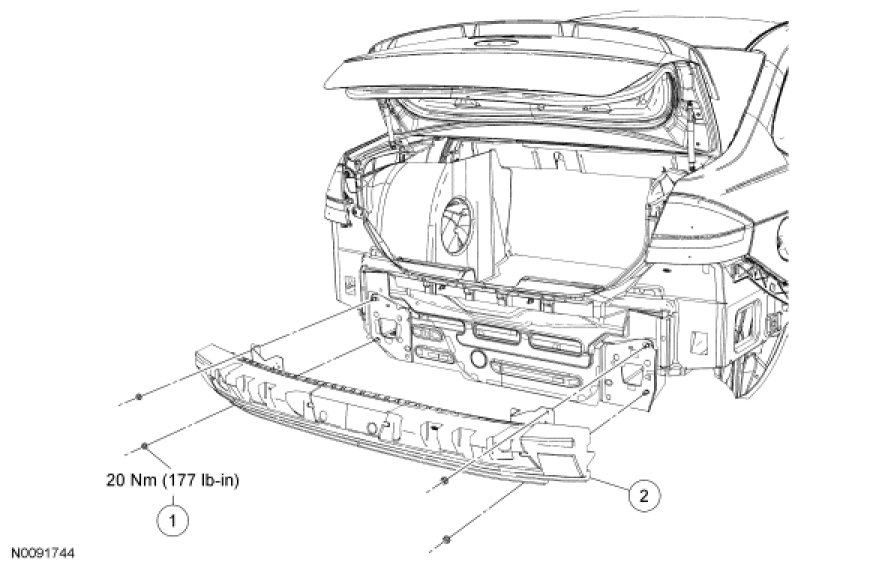

NOTE: Sedan shown, coupe similar.










Removal and Installation

1. Remove the rear bumper cover. For additional information, refer to Bumper Cover - Rear Removal and Replacement.

2. Remove the 4 rear bumper retainer nuts and the rear bumper.
- To install, tighten to 20 Nm (177 lb-in).

3. To install, reverse the removal procedure.
