Home >> Ford >> 2009 >> Focus L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C100-C150 >> C135

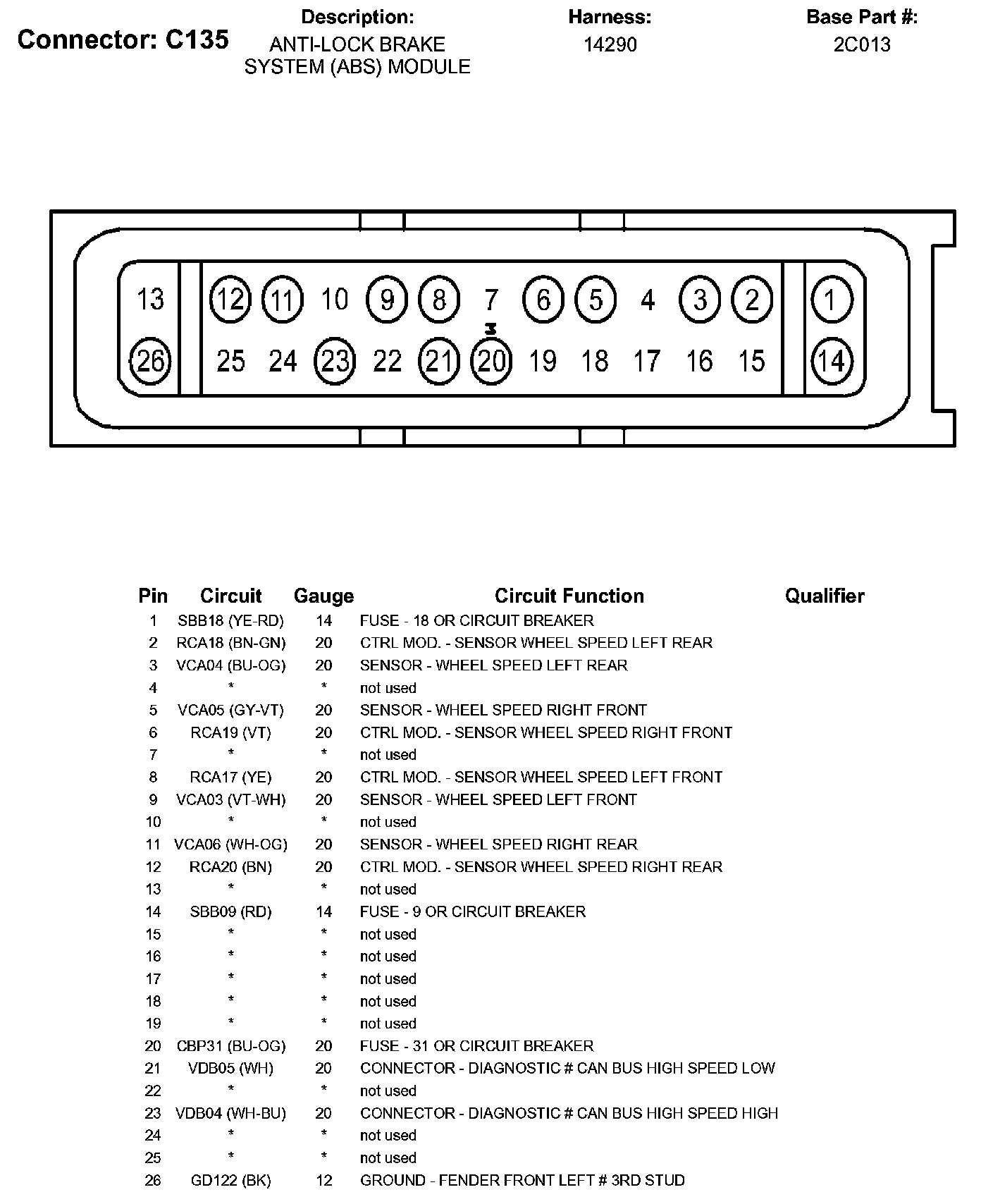

C135



Part 1:



Part 2:
