Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2009
>>
Focus L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
Connectors
C100-C175E:
C175b-C312:
C317-C520:
C523-C1077:

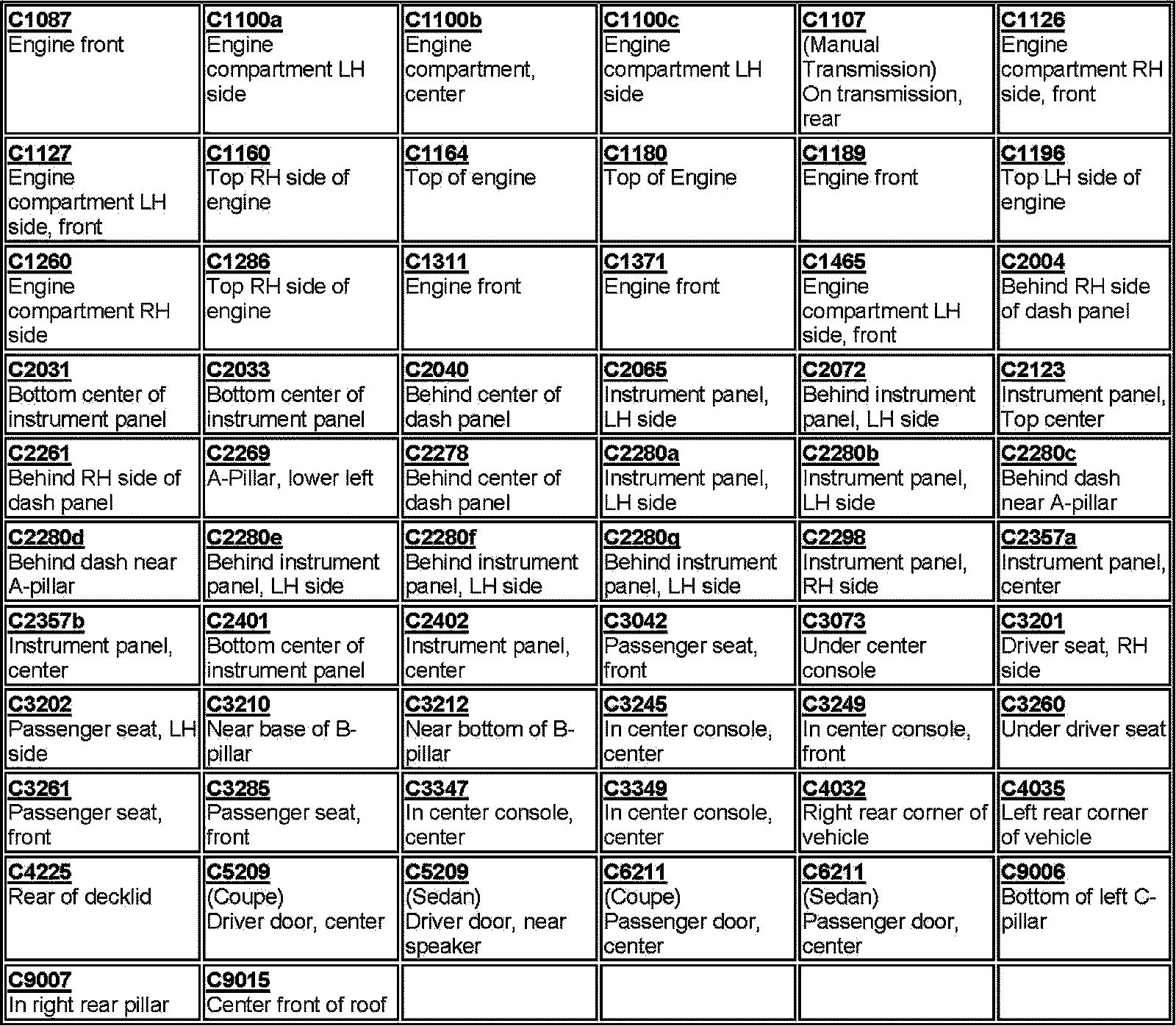

C1087-C9015:
