Pressure Plate
Pressure Plate

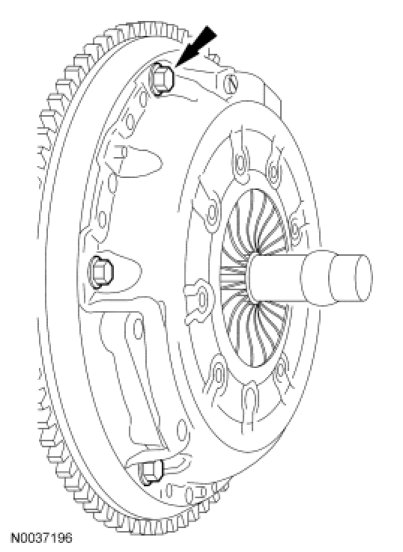

Using a suitable clutch aligner, position the
clutch disc
and clutch pressure plate on the
flywheel
. Install the 6 new clutch pressure plate-to-flywheel bolts.
Tighten the bolts evenly in a star pattern to
29 Nm (21 lb-ft).
