Oil Pump, Engine

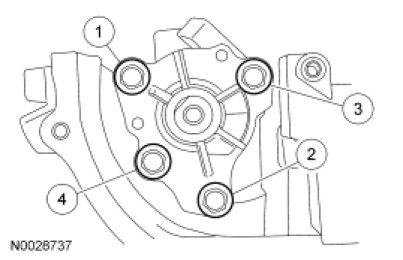

Install the oil pump assembly. Tighten the 4 bolts in the sequence shown in 2 stages.
Stage 1 Tighten to 10 Nm (89 lb-in).
Stage 2 Tighten to 20 Nm (177 lb-in).
