Home
>>
Ford
>>
2009
>>
Mustang V6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle
5R55S Transmission

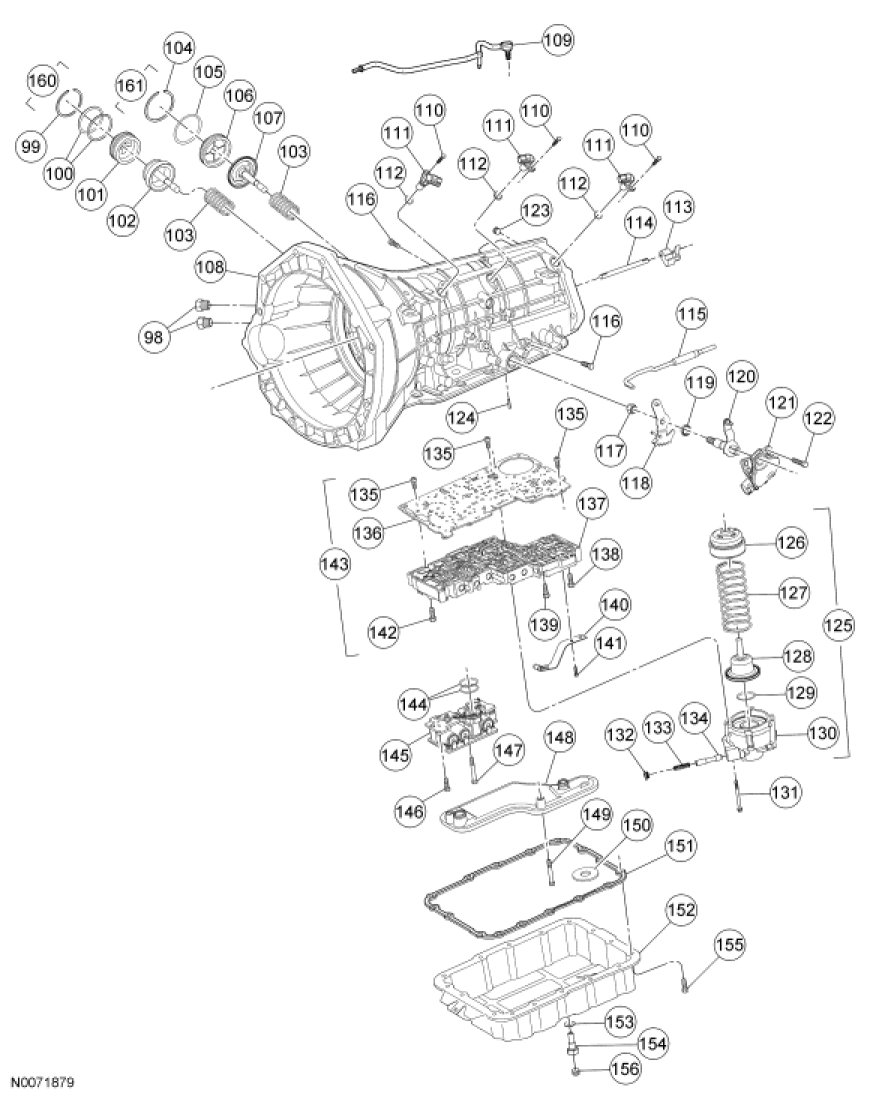

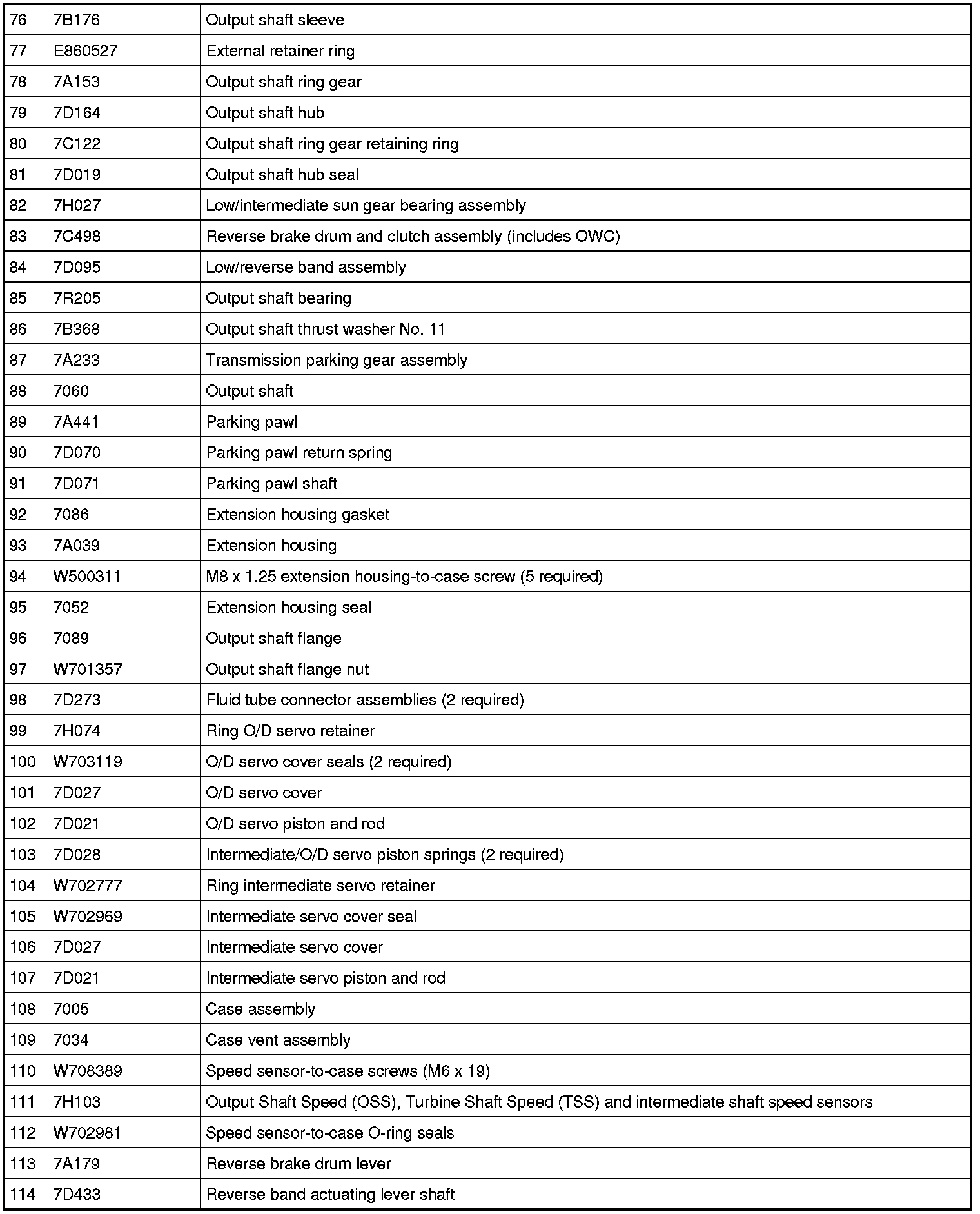

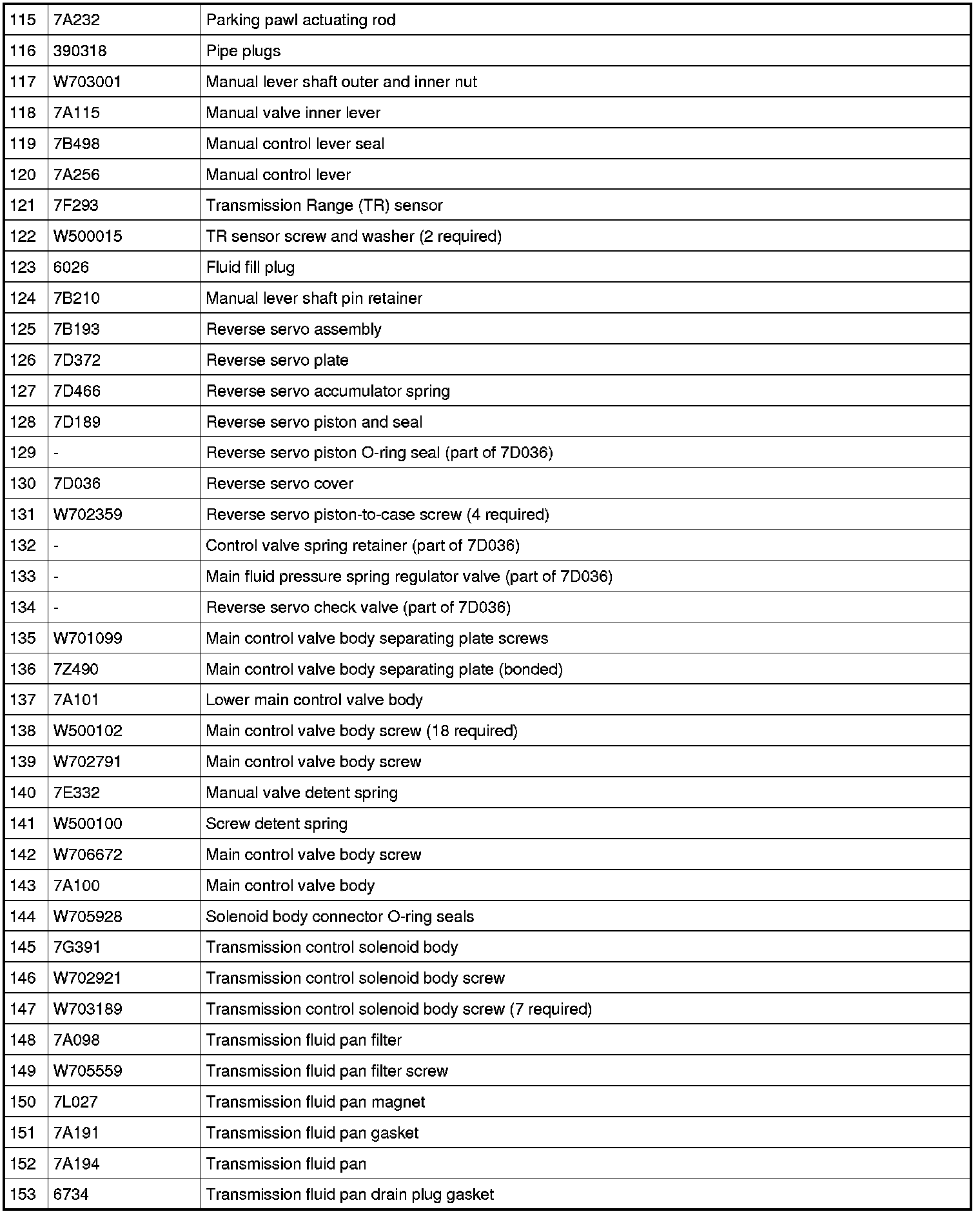

Disassembled Views
