Timing Component Alignment Marks: Locations

Early build vehicles equipped with a balance shaft

NOTE: Due to the gear ratio between the reversal shaft and the balance shaft, up to 7 complete turns of the balance shaft may be required to find the correct position.

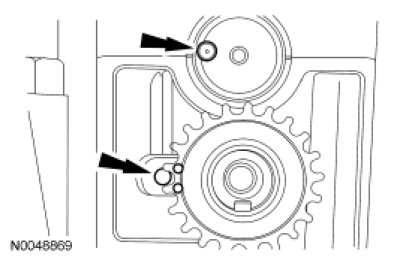

Align the timing marks.

Late build vehicles equipped with a balance shaft

NOTE: Due to the gear ratio between the reversal shaft and the balance shaft, up to 7 complete turns of the balance shaft may be required to find the correct position.

Align the timing marks.

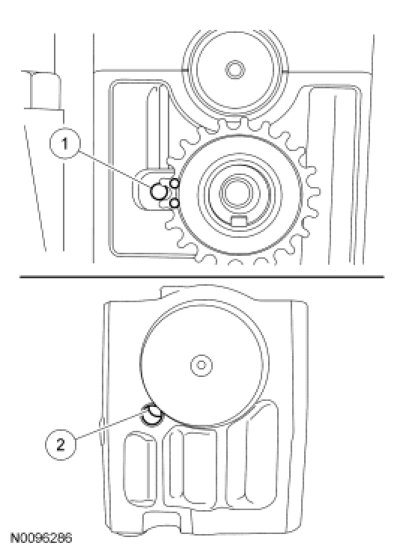

Align the front balance shaft gear alignment marks with the hole in the balance shaft housing.

From the rear of the balance shaft, make sure the balance shaft gear alignment mark is visible through the hole in the balance shaft housing.

Vehicles equipped with a balance shaft

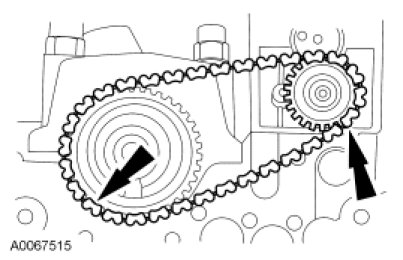

Install the balance shaft chain and crankshaft sprocket.

All vehicles

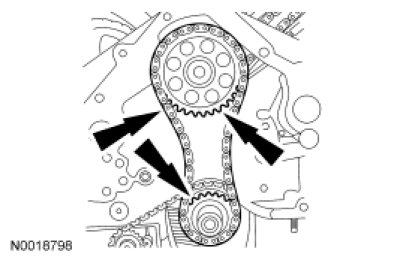

Install the crankshaft key. Position the jackshaft and crankshaft sprockets and the chain.

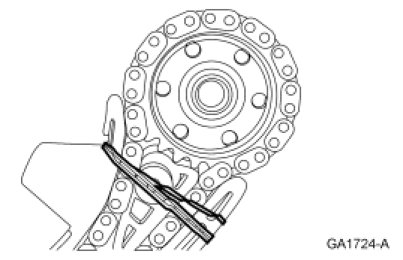

Position the RH camshaft sprocket.

NOTICE: The RH camshaft sprocket bolt is a LH-threaded bolt. Turning the bolt in the wrong direction can damage the bolt.

NOTE: The camshaft sprocket must turn freely on the camshaft. Do not tighten the bolt.

Position the LH camshaft sprocket.

NOTE: The camshaft sprocket must turn freely on the camshaft. Do not tighten the bolt.

Turn the crankshaft one revolution clockwise.

NOTICE: Do not rotate the engine counterclockwise. Rotating the engine counterclockwise will result in incorrect timing of the engine.

NOTE: The Crankshaft TDC Timing Tool must be installed on the damper and should contact the engine block. This positions the engine at Top Dead Center (TDC).

Install the Crankshaft TDC Timing Tool.

NOTE: Camshaft timing slots are off-center.

NOTE: Position the camshaft timing slots below centerline of camshaft.

Install the Camshaft Holding Tool and the Adapter for 303-577 on the front of the RH cylinder head.

NOTE: Leave the top 2 Camshaft Sprocket Holding Tool clamp bolts loose.

Install the Camshaft Sprocket Holding Tool and the Adapter for 303-564 on the rear of the RH cylinder head.
