Crown Victoria V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
Connectors

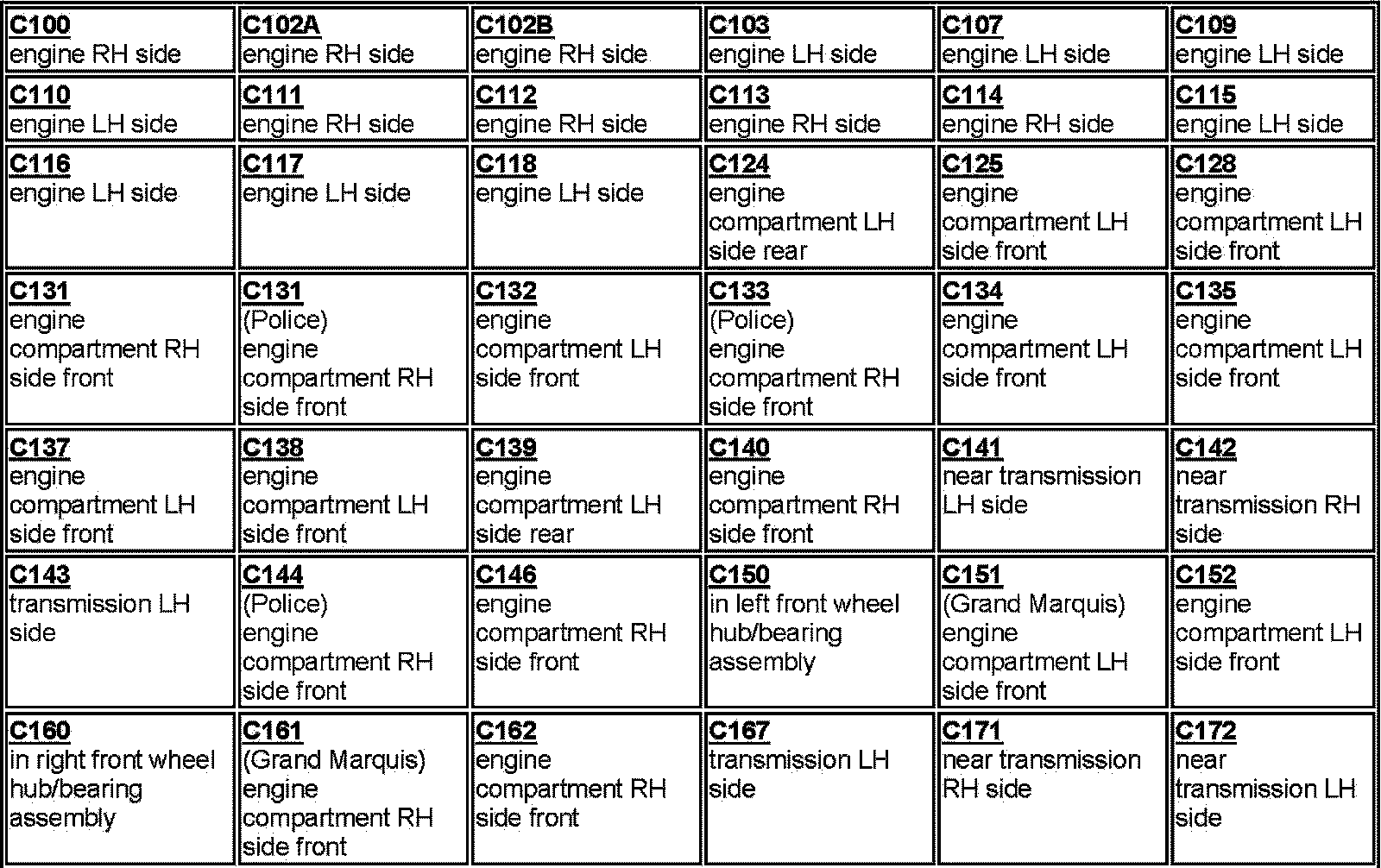

C100-C172:

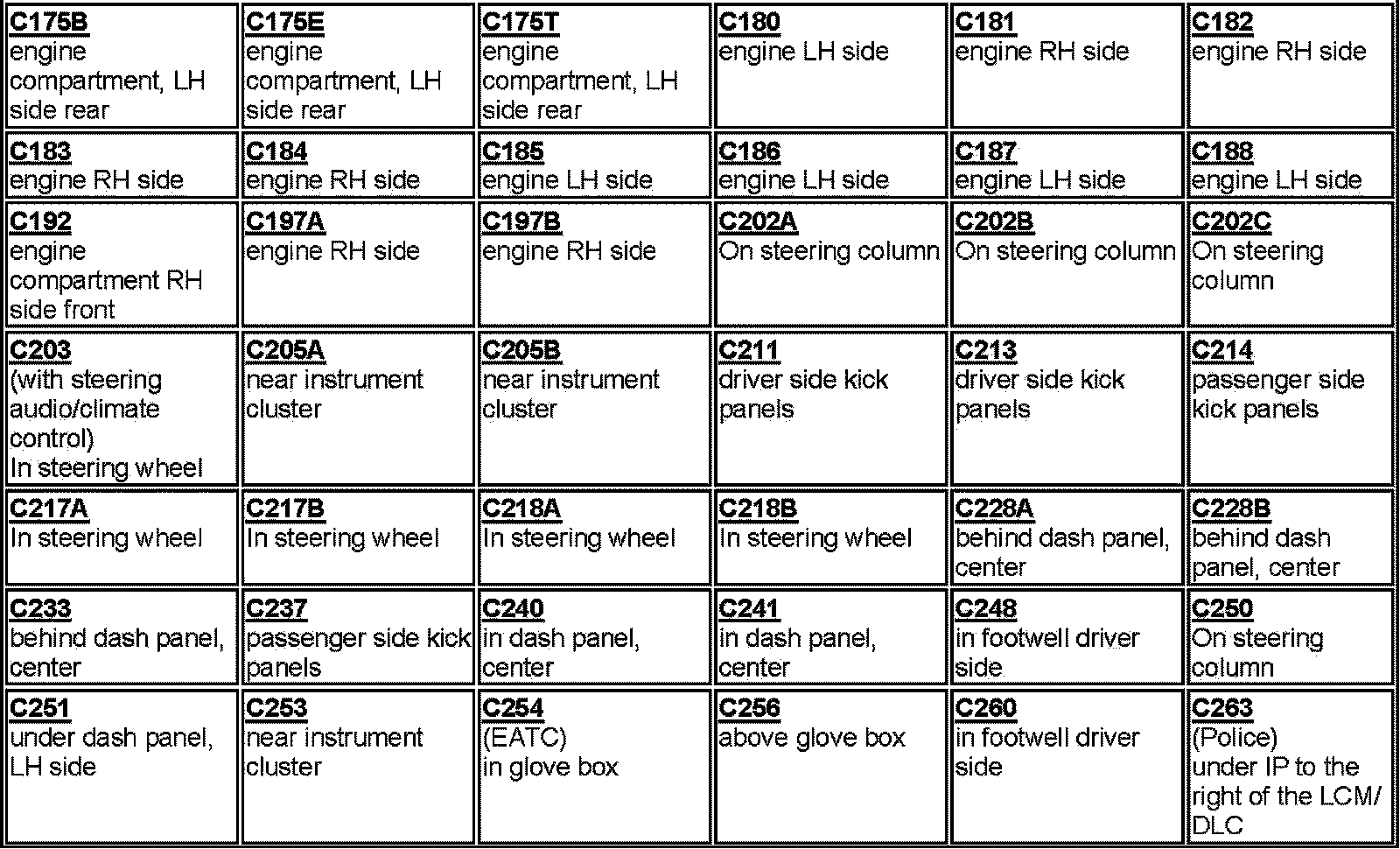

C175B-C263:

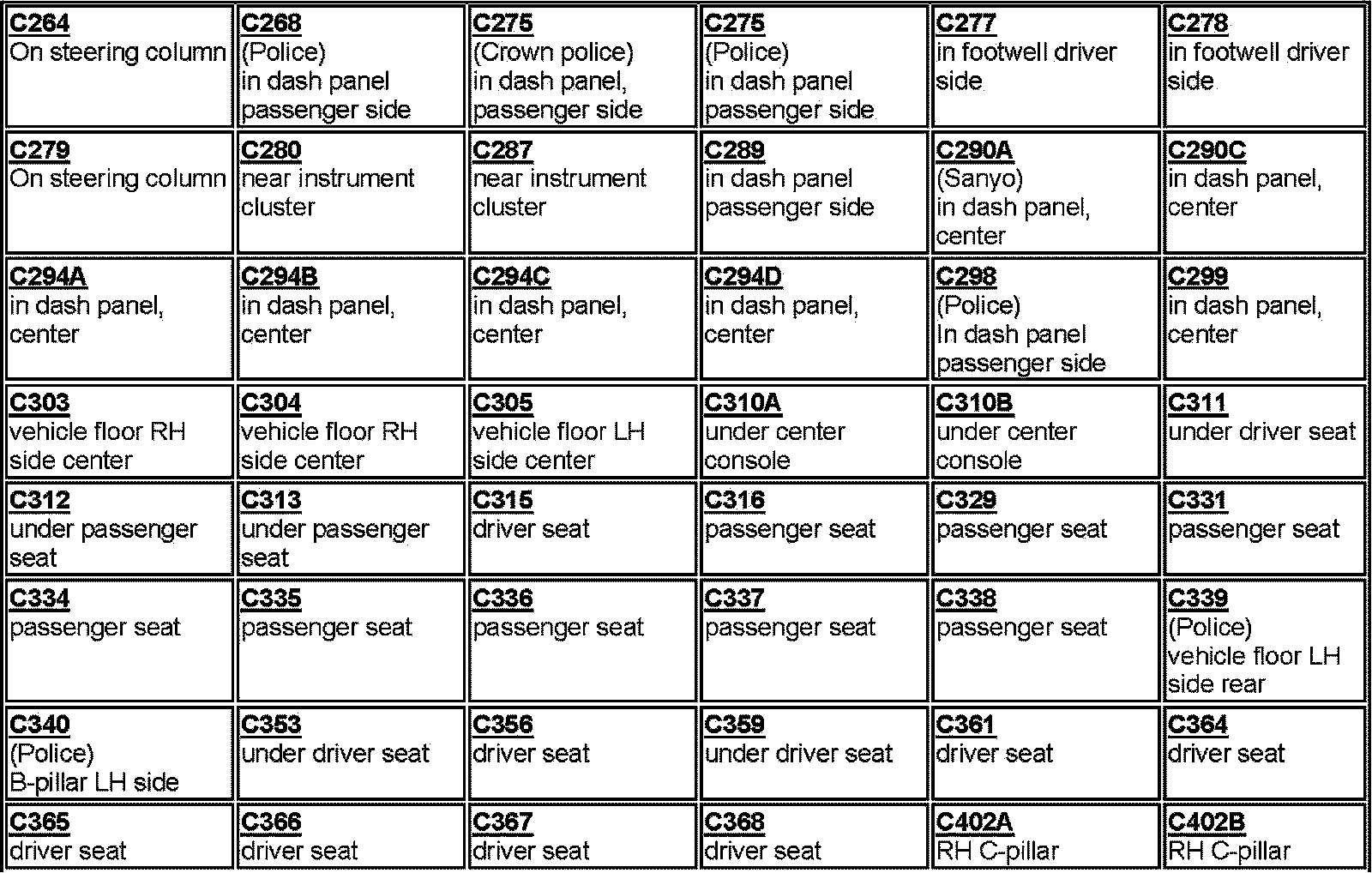

C264-C402B:

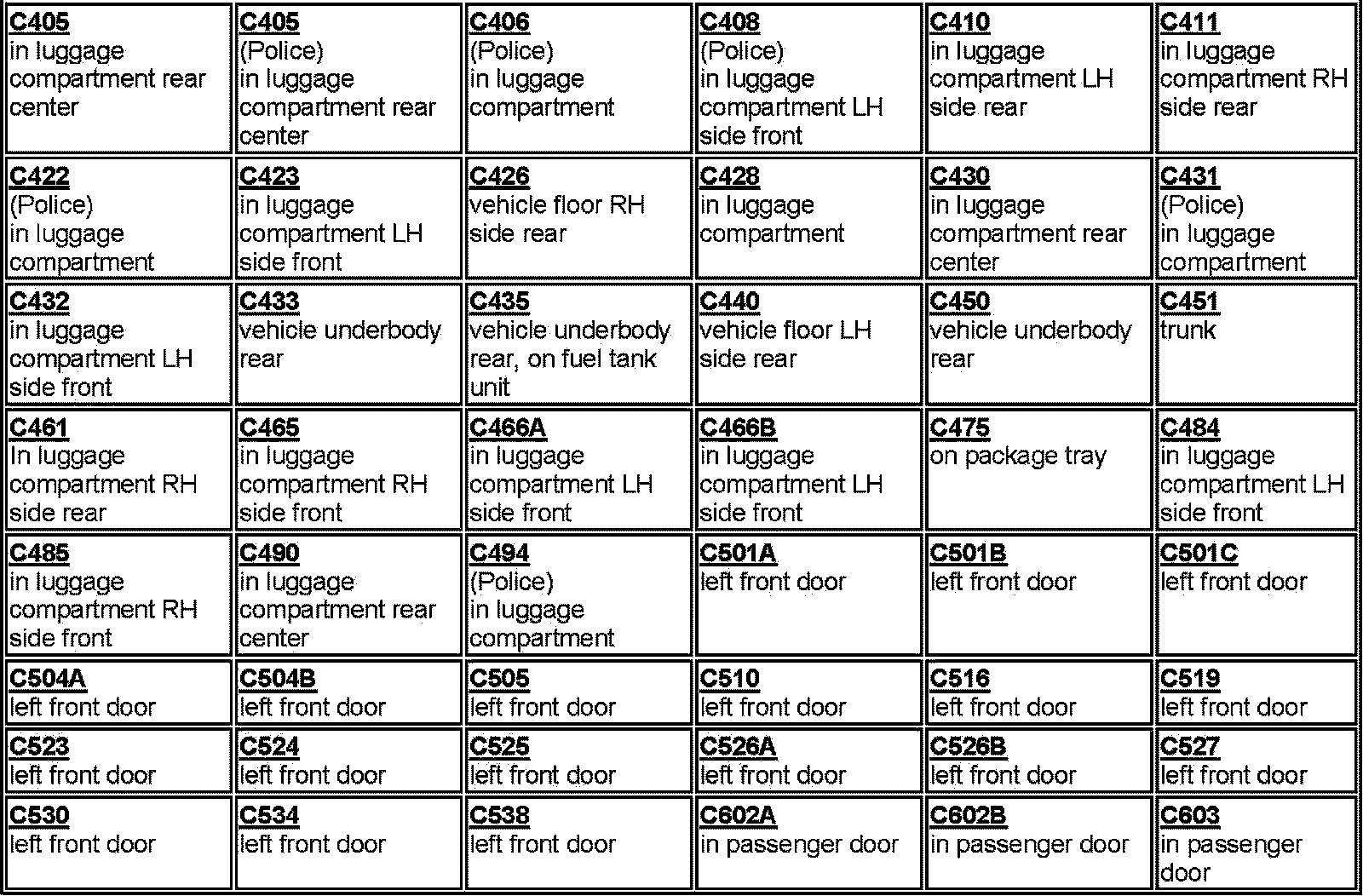

C405-C603:
C605-C1081:
C1100A-C2008:

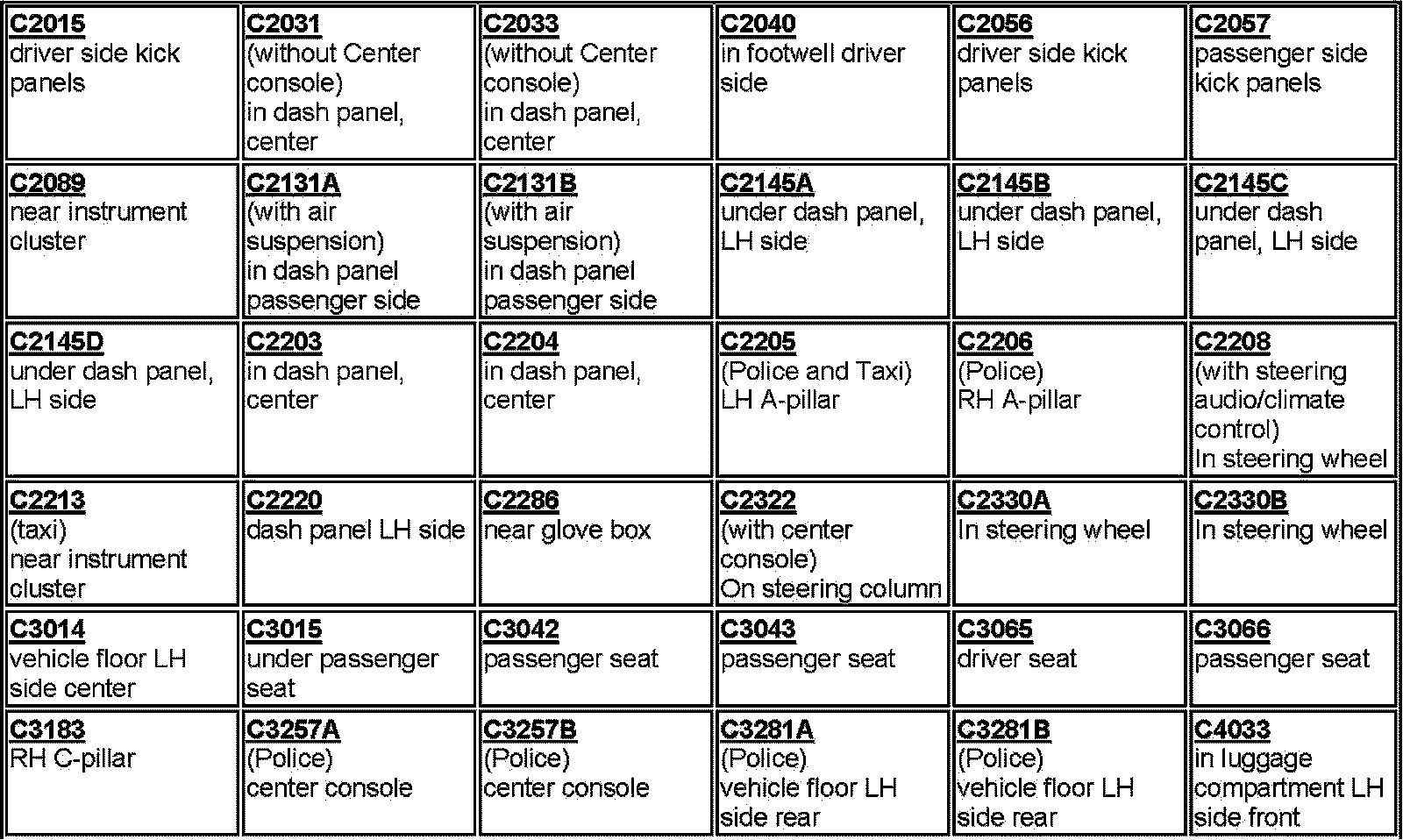

C2015-C4033:

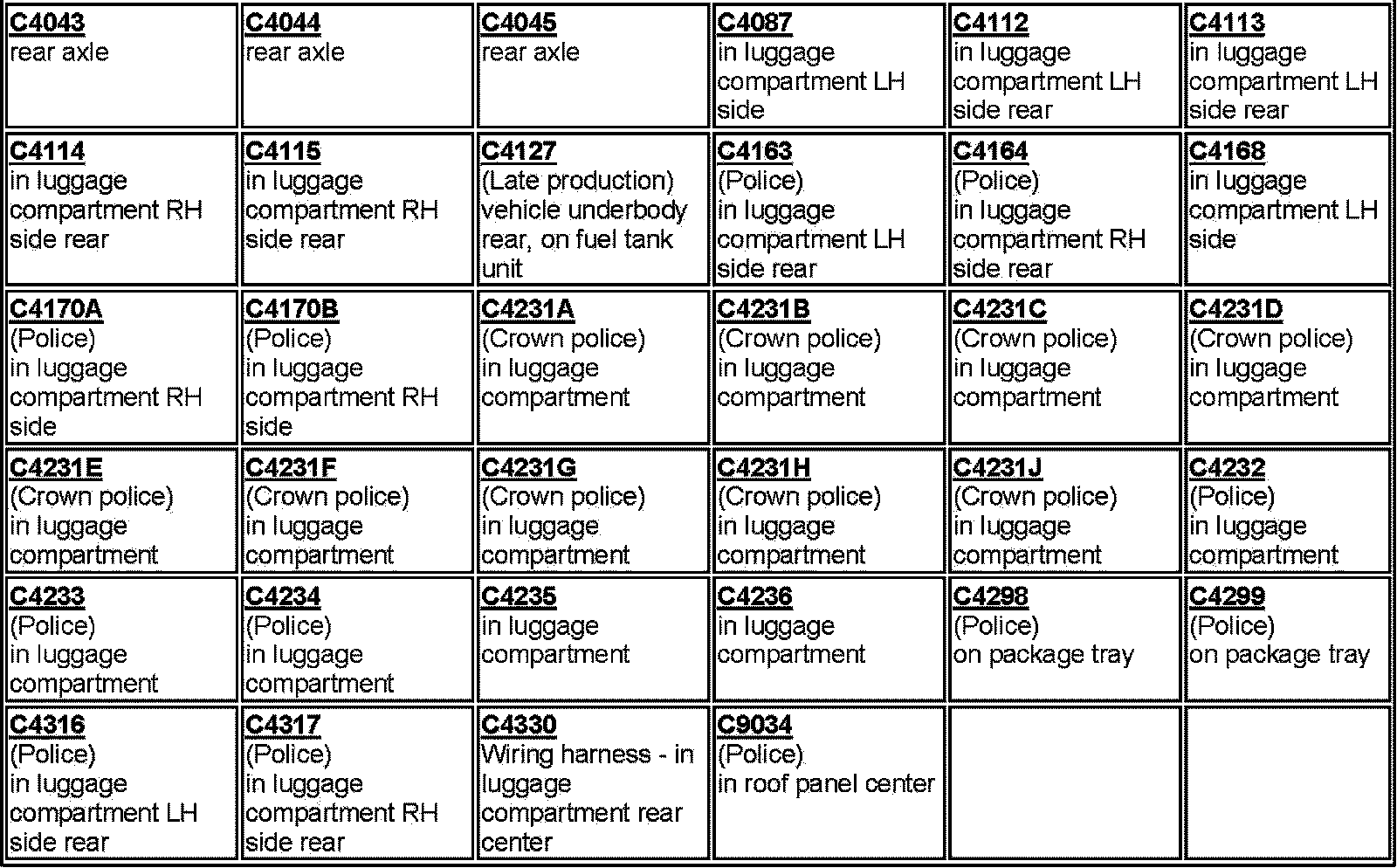

C4043-C9034:
