Rear Door Window Glass Weatherstrip
Rear Door Window Glass Weatherstrip

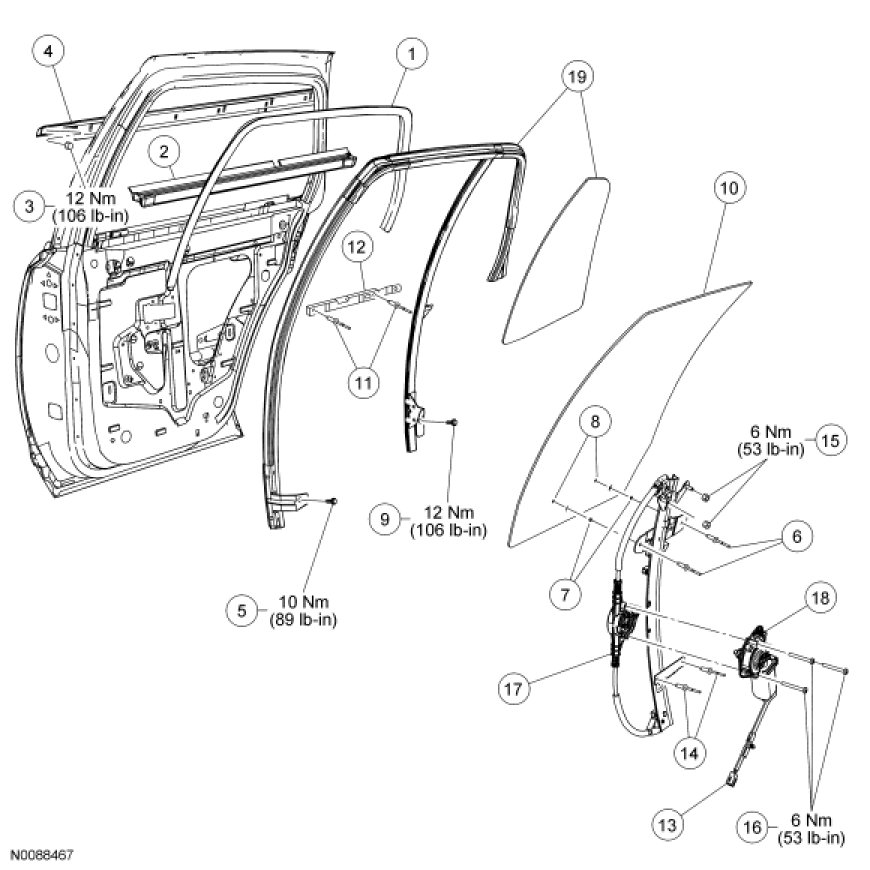

Glass, Frames and Mechanisms - Exploded View, Rear Door
NOTE:
RH rear door shown, LH rear door similar.
