Vacuum Reservoir HVAC: Service and Repair

Vacuum Reservoir









Removal and Installation

1. Remove the wiper mounting arm and pivot shaft. For additional information, refer to Wiper and Washer Systems.

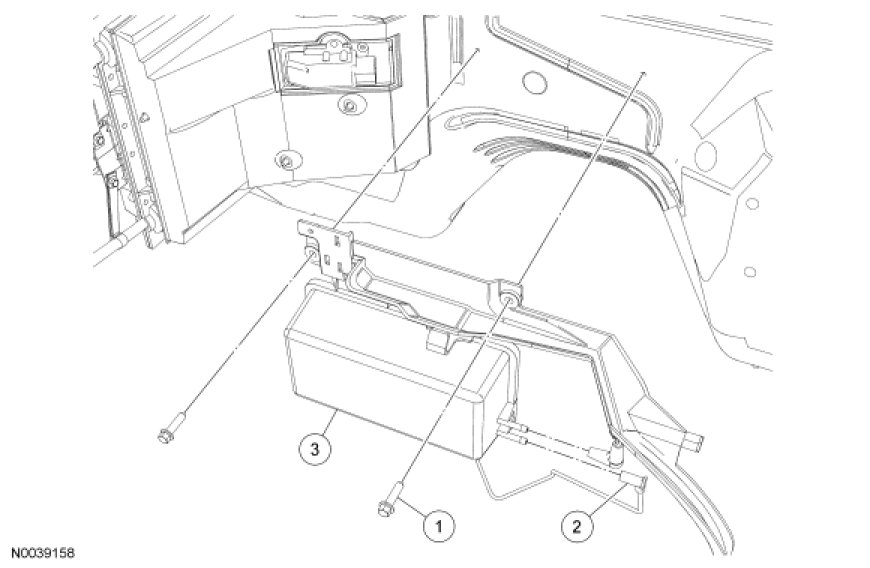

2. Disconnect the 2 vacuum reservoir vacuum connectors.

3. Remove the 2 vacuum reservoir retaining screws.

4. Remove the vacuum reservoir.

5. To install, reverse the removal procedure.
