Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 2010 >> Crown Victoria V8-4.6L >> Repair and Diagnosis >> Lighting and Horns >> Center Mounted Brake Lamp >> Diagrams

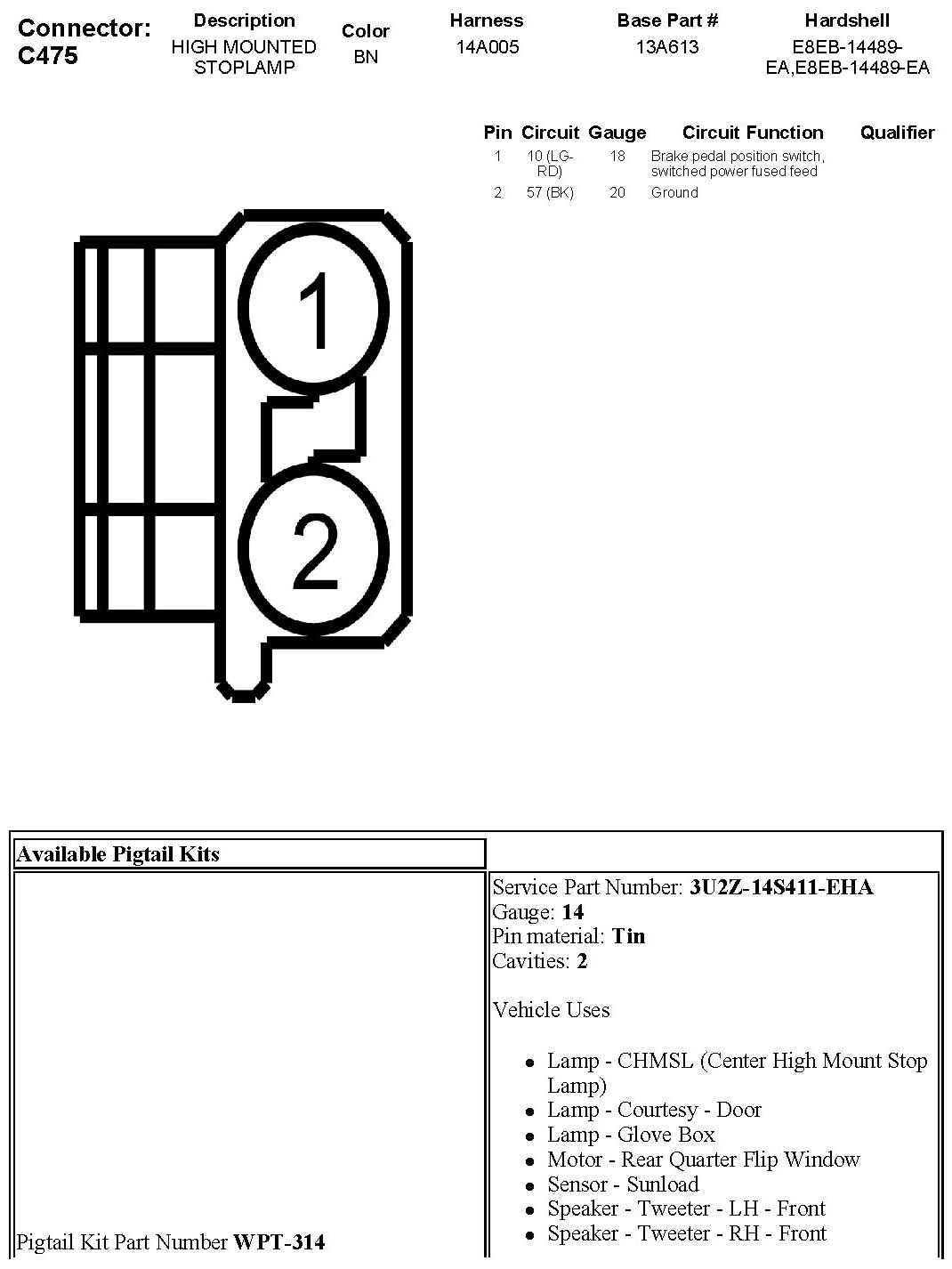

Center Mounted Brake Lamp: Diagrams
