Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2010
>>
Fusion FWD L4-2.5L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag
>>

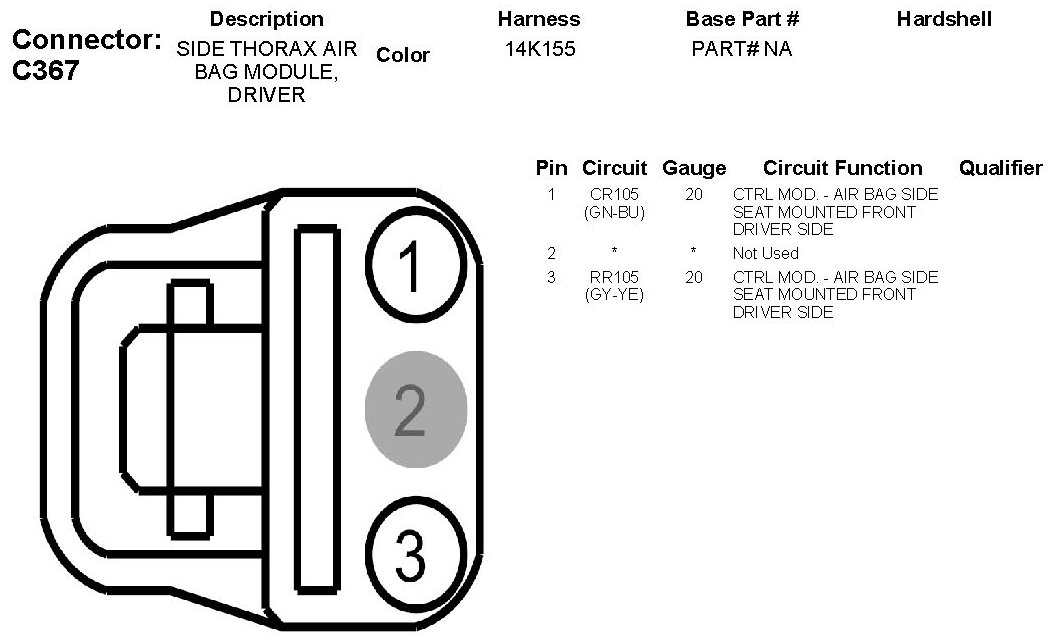

SideThorax Air Bag Module, Driver
SideThorax Air Bag Module, Driver
