Connectors
Connectors

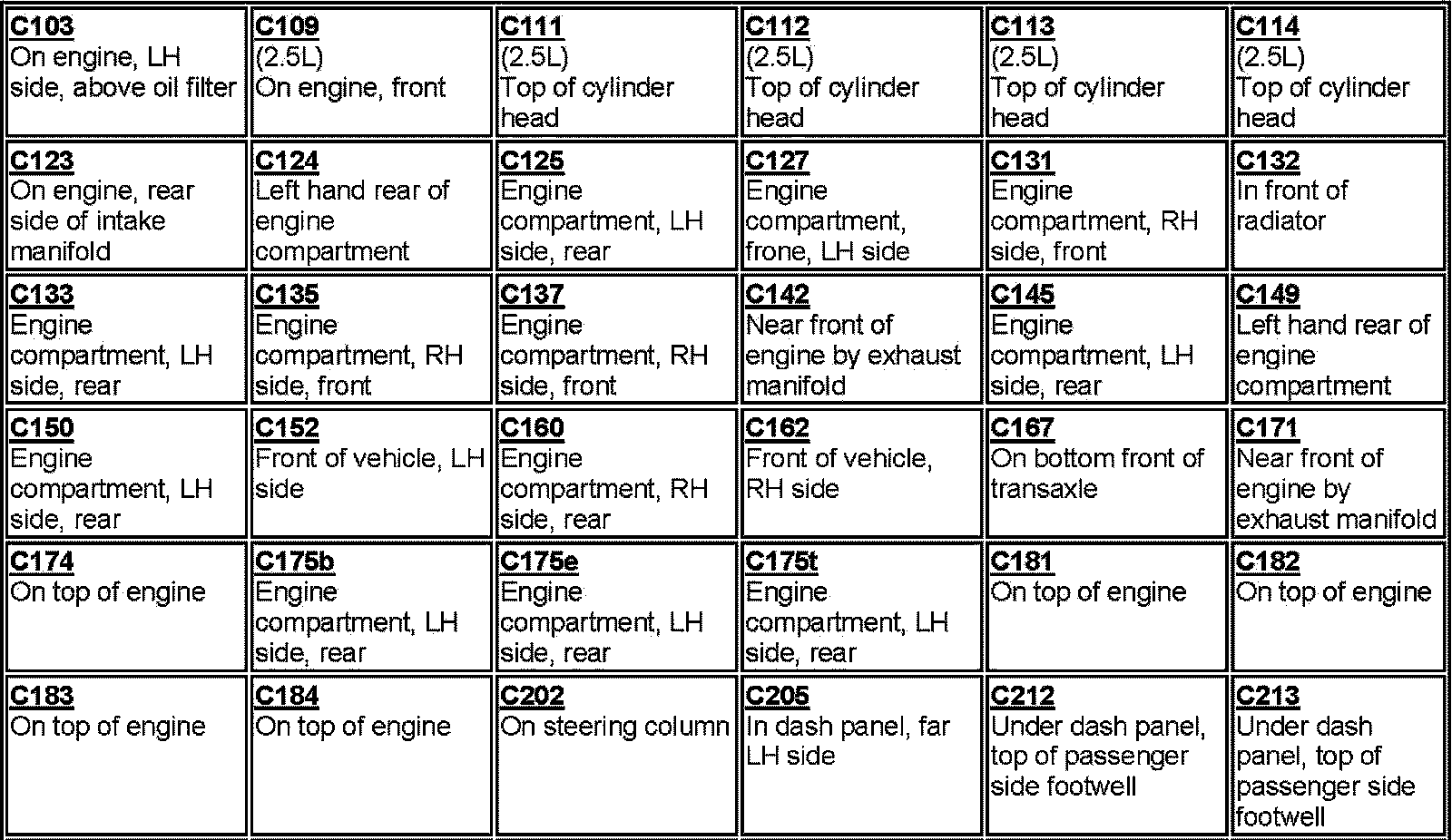

C103-C213:
C214-C364:
C365-C537a:

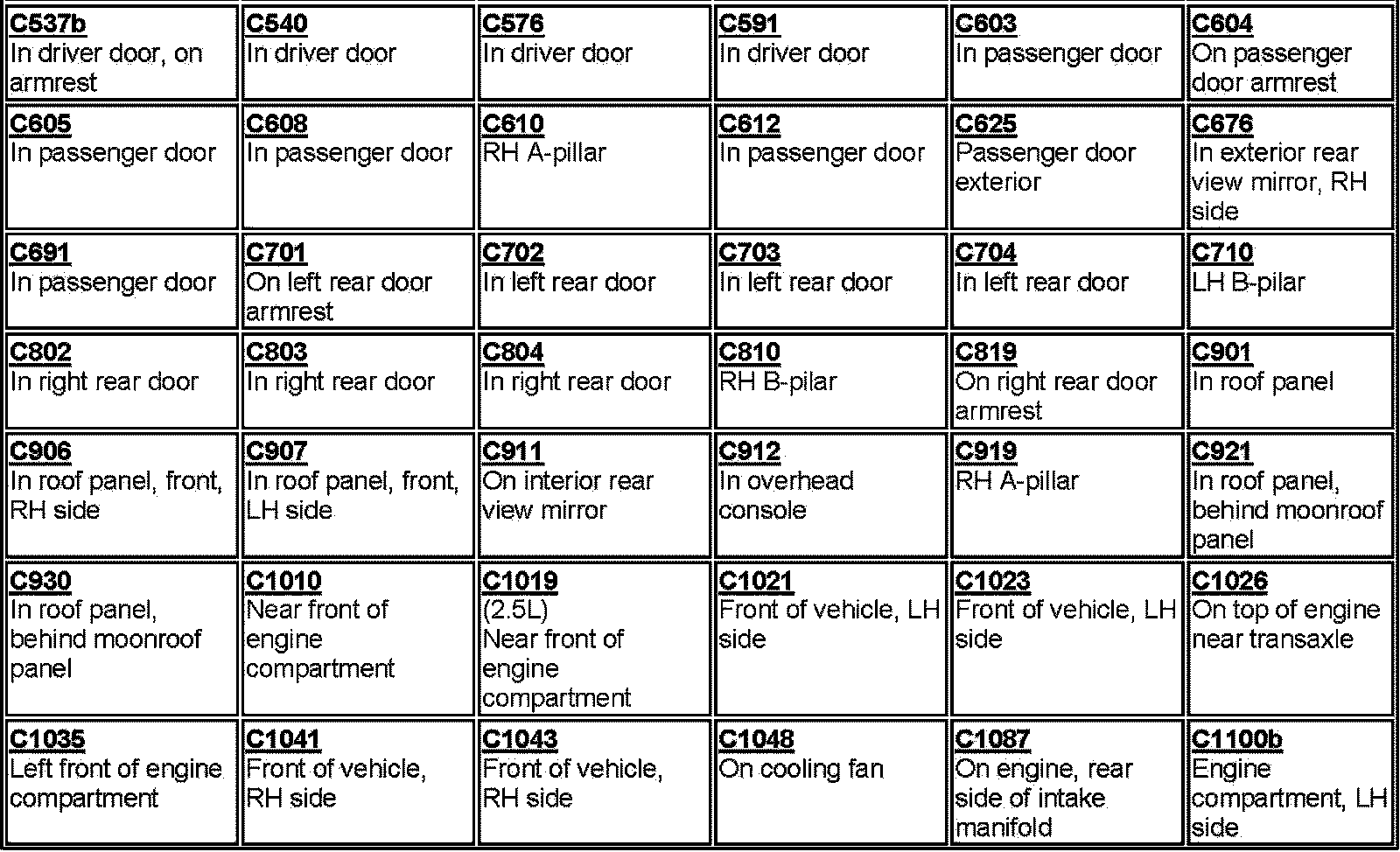

C537b-C1100b:

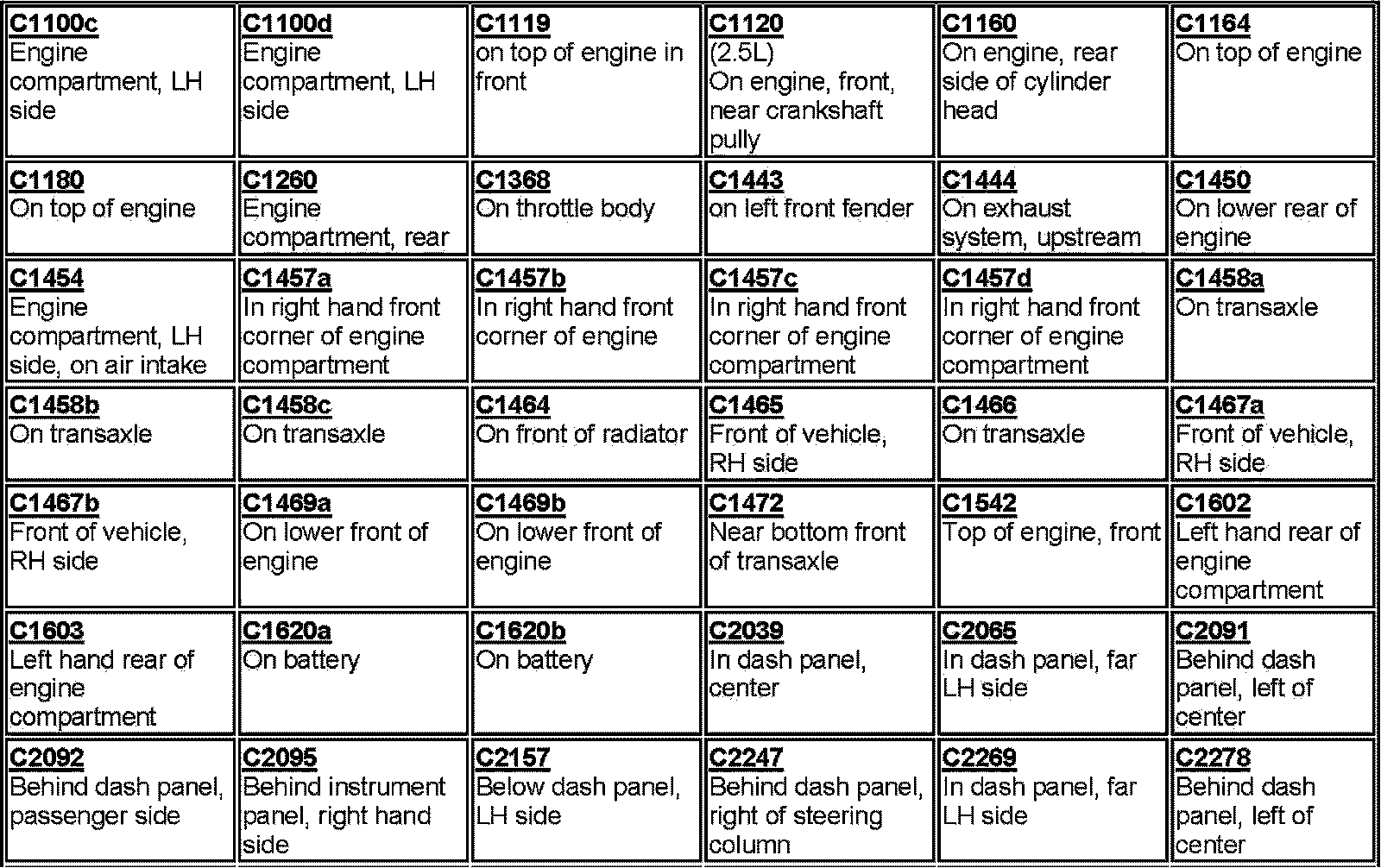

C1100c-C2278:
C2280a-C3058:
C3059-C4015:

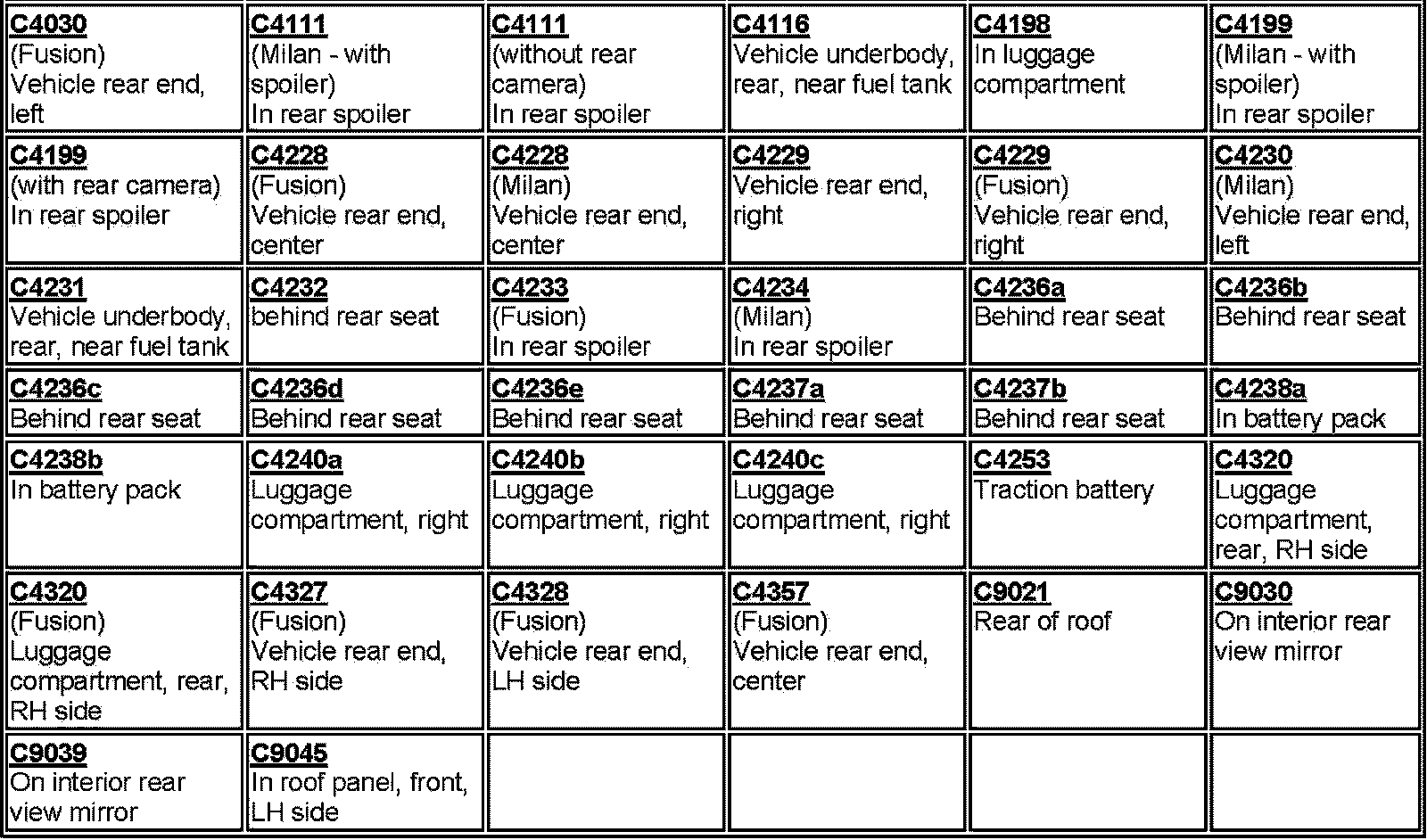

C4030-C9045:
