Home >> Ford >> 2010 >> Fusion FWD L4-2.5L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Battery System, Hybrid Drive >> Battery Cooling Fan >> Locations

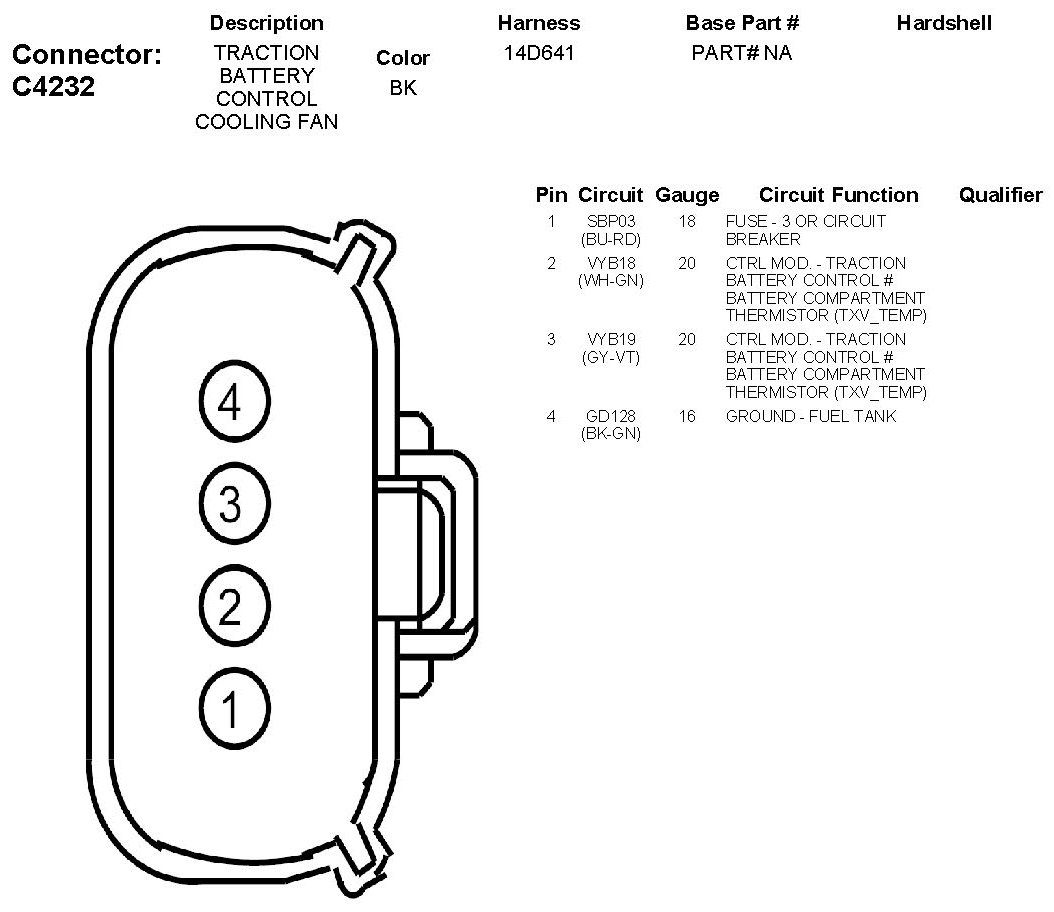

Battery Cooling Fan: Locations
