Starting System: Description and Operation

Hybrid Electric Control Software

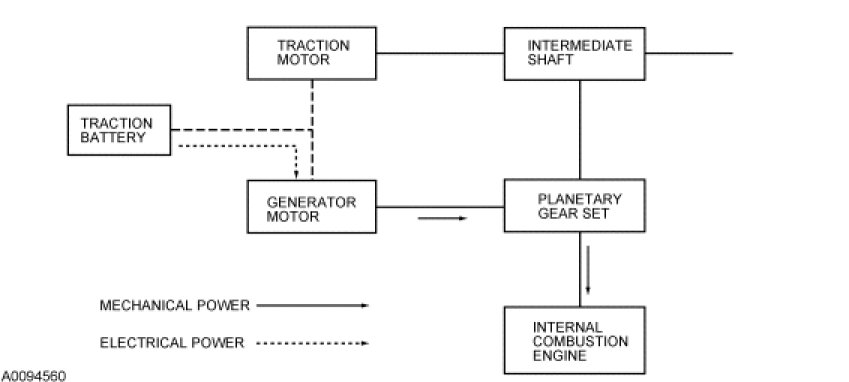

Engine Cranking Mode

The electronically controlled CVT provides the engine cranking function to start or restart the internal combustion engine. When the PCM requests the engine cranking mode, the generator motor rapidly accelerates the engine speed up to about 950 RPM in about 0.3 seconds. When the engine speed reaches a calibrated speed the PCM commands the delivery of fuel and spark at the appropriate times.
