Lighting and Horns: Testing and Inspection

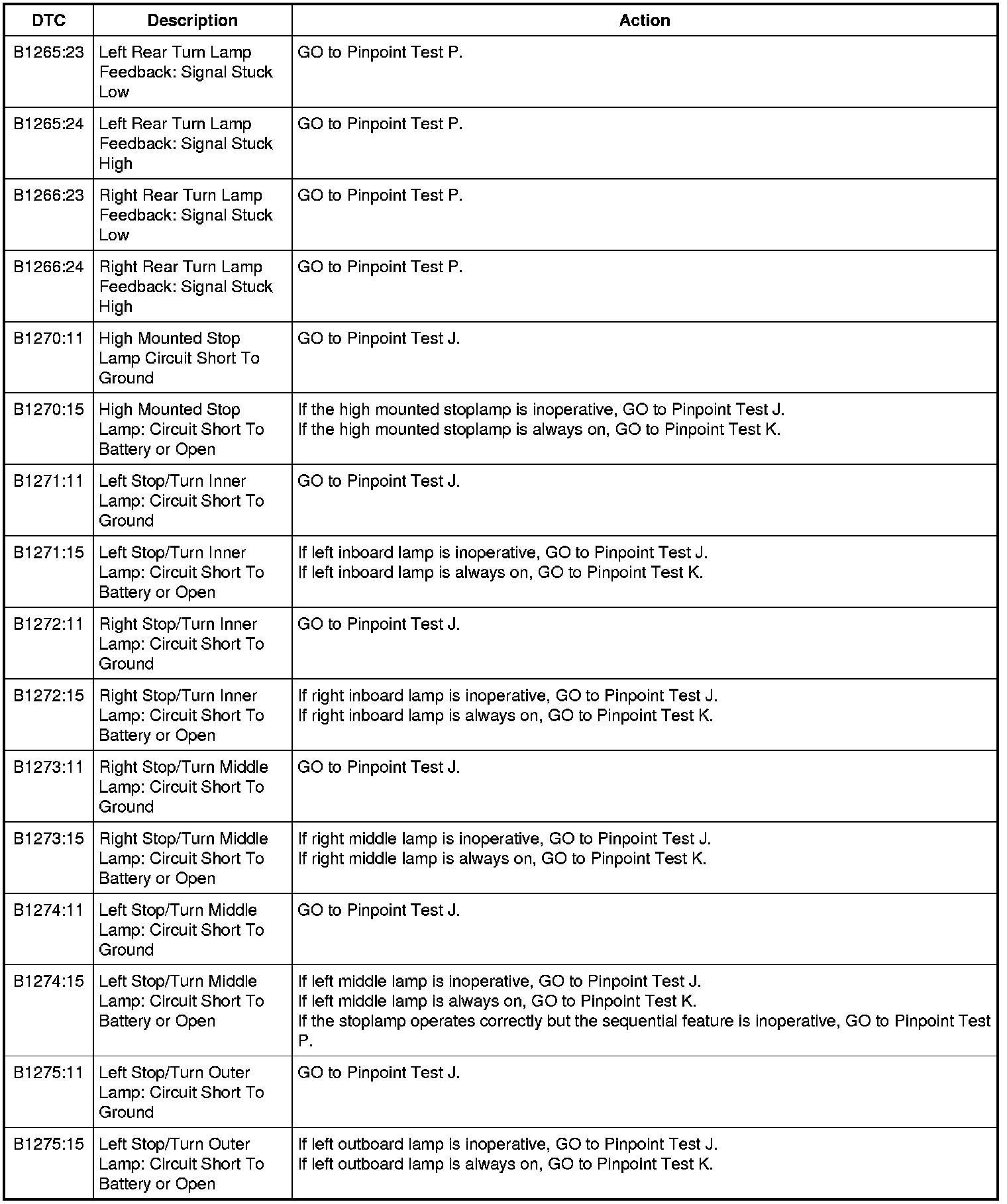

Diagnostic Trouble Code (DTC) Chart


Smart Junction Box (SJB) DTC Chart











Body Control Module B (BCM-B) DTC Chart
