Emission Control Systems: Diagrams
Engine Emission Control
Vehicle Emission Vacuum Routing

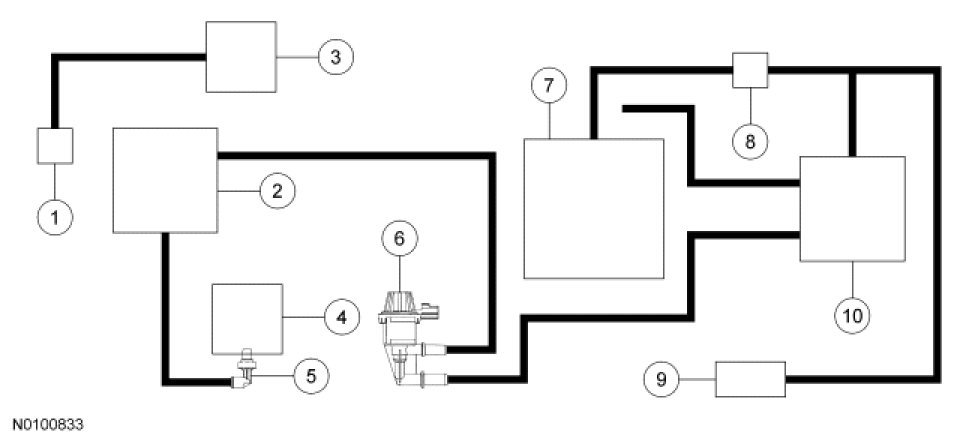

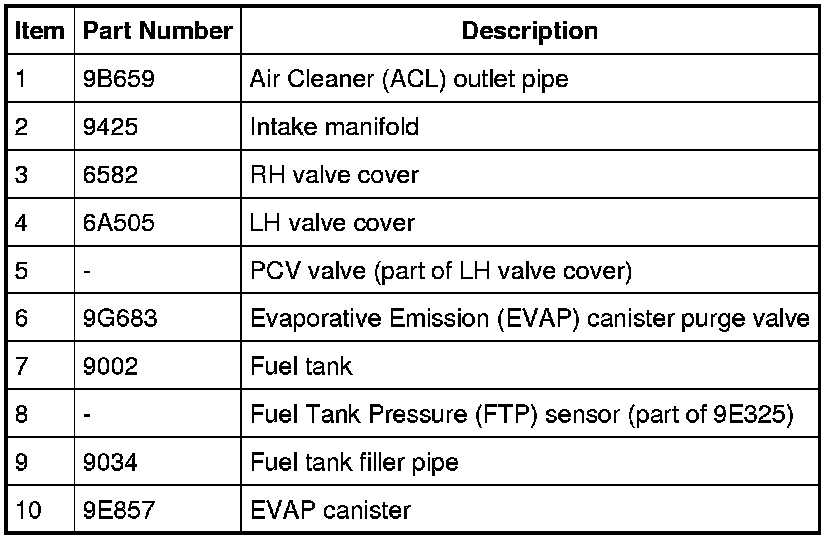

4.0L SOHC

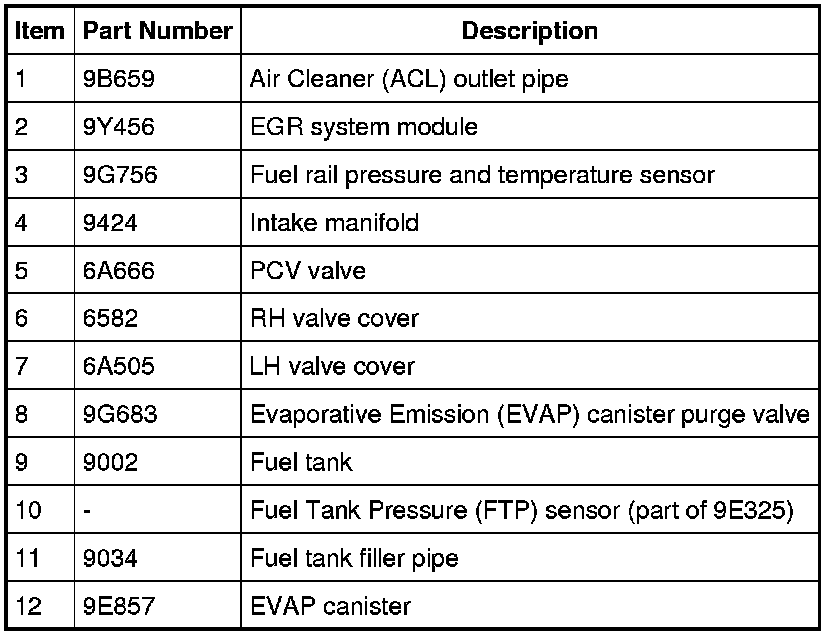

4.6L (3V)

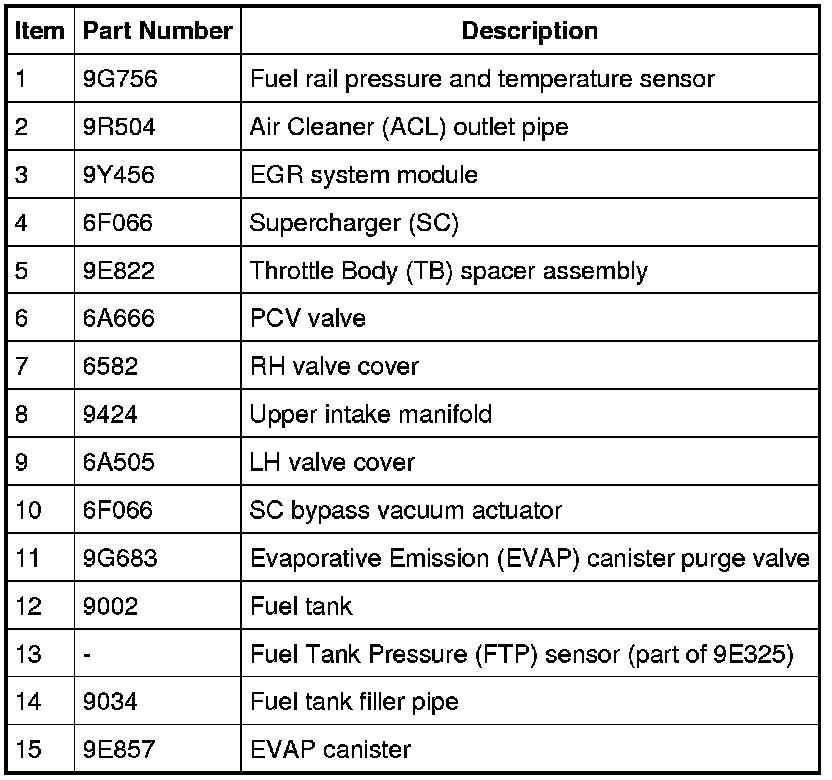

5.4L (4V)
