Exterior Mirror Cover

Exterior Mirror Cover

Removal and Installation

1. Remove the exterior mirror glass. For additional information, refer to Exterior Mirror Glass Exterior Mirror Glass.

2. NOTE: The exterior mirror motor is removed for clarity. It is not necessary to remove the exterior mirror motor when performing this step.

Release the 5 exterior mirror cover retaining tabs.

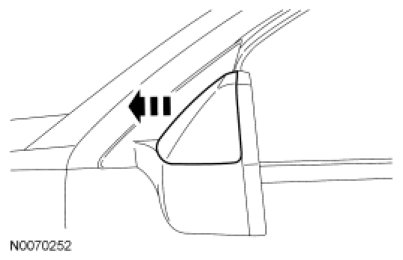

3. Remove the exterior mirror cover.
- Pull the exterior mirror outward.





4. To install, reverse the removal procedure.
