Focus L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
Connectors
C100-C175E:
C175b-C312:

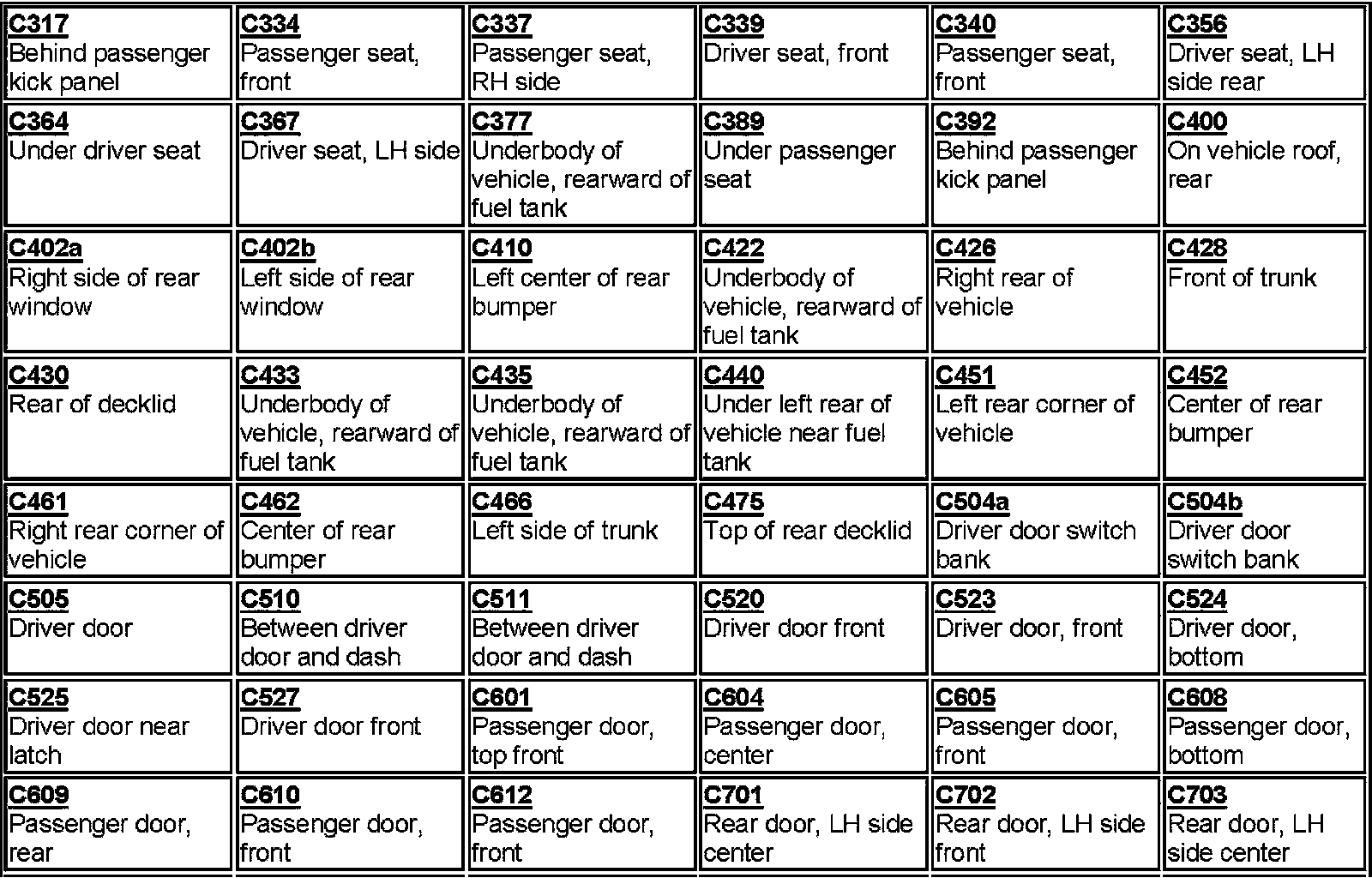

C317-C703:
C704-C2072:

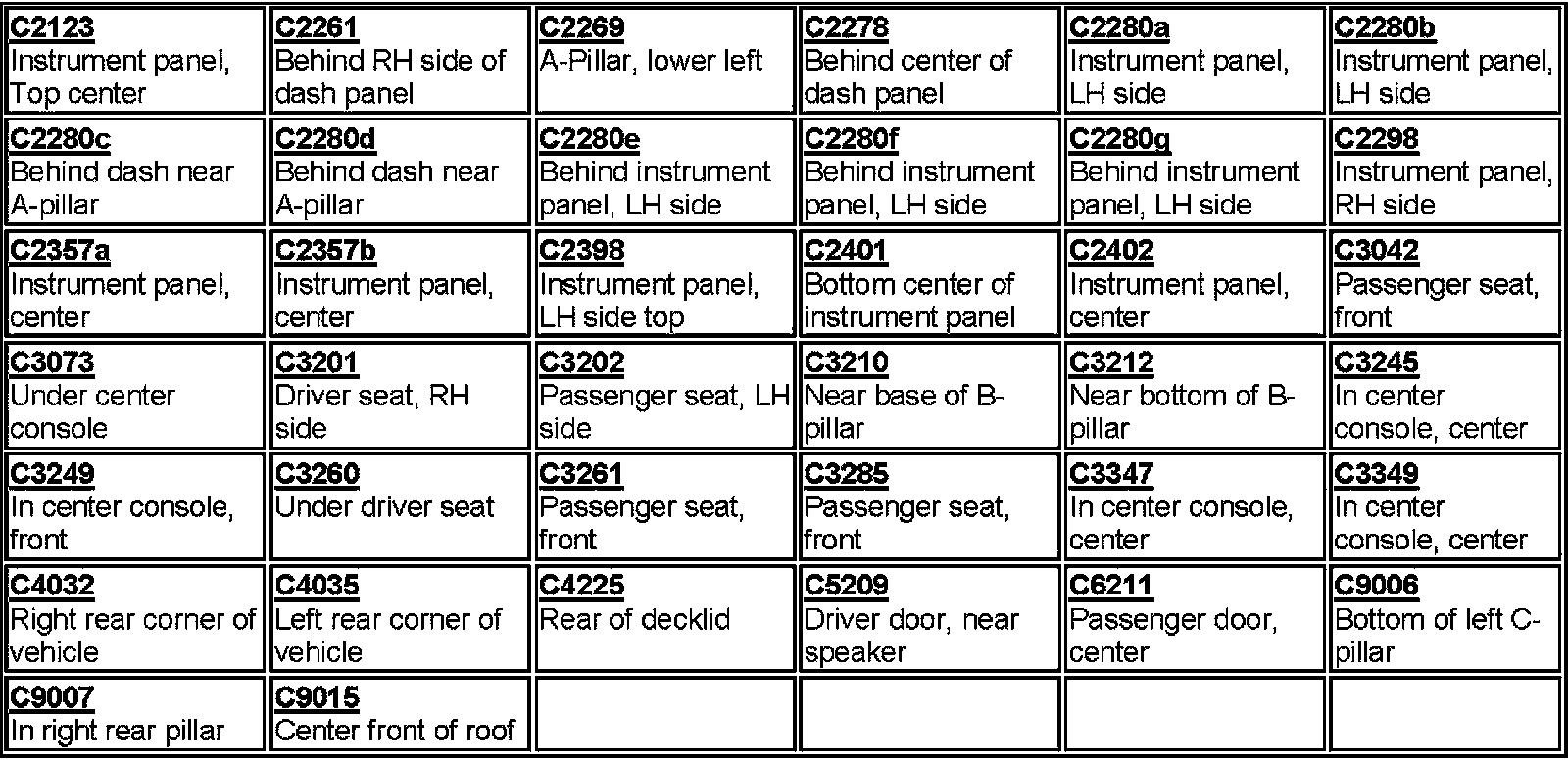

C2123-C9015:
