Home >> Ford >> 2011 >> Focus L4-2.0L >> Repair and Diagnosis >> Diagrams >> Grounds

Grounds

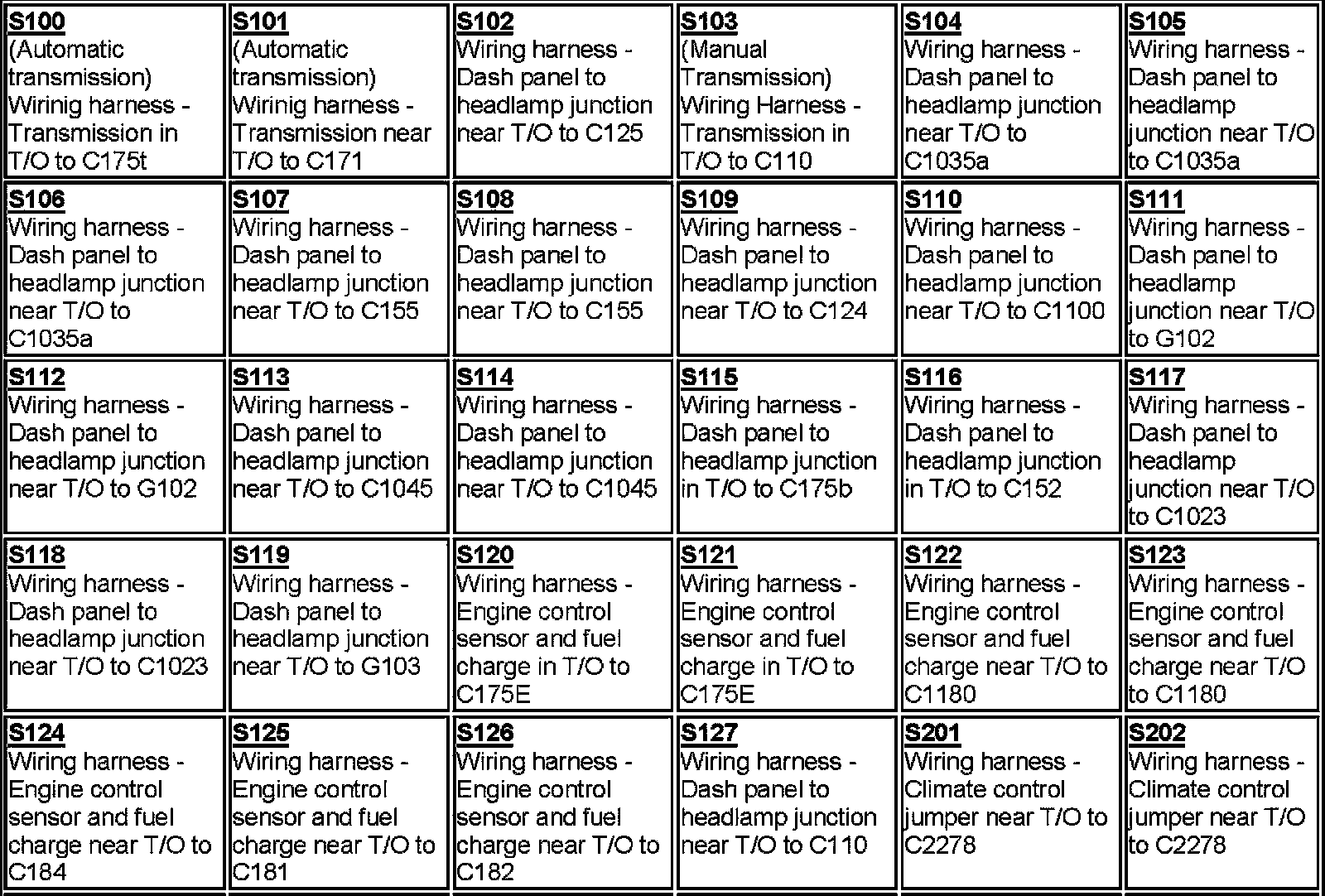

S100-S202:

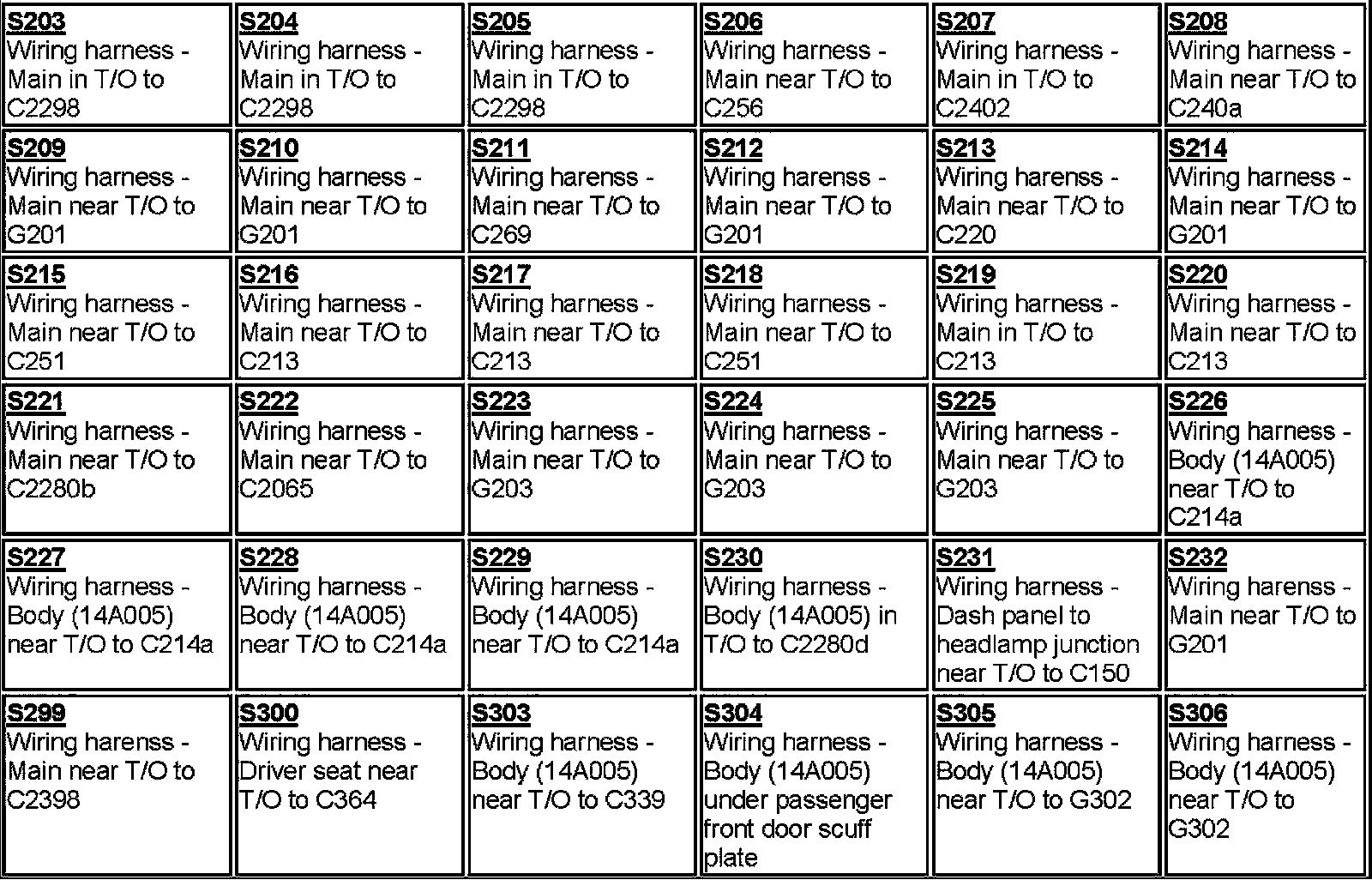

S203-S306:

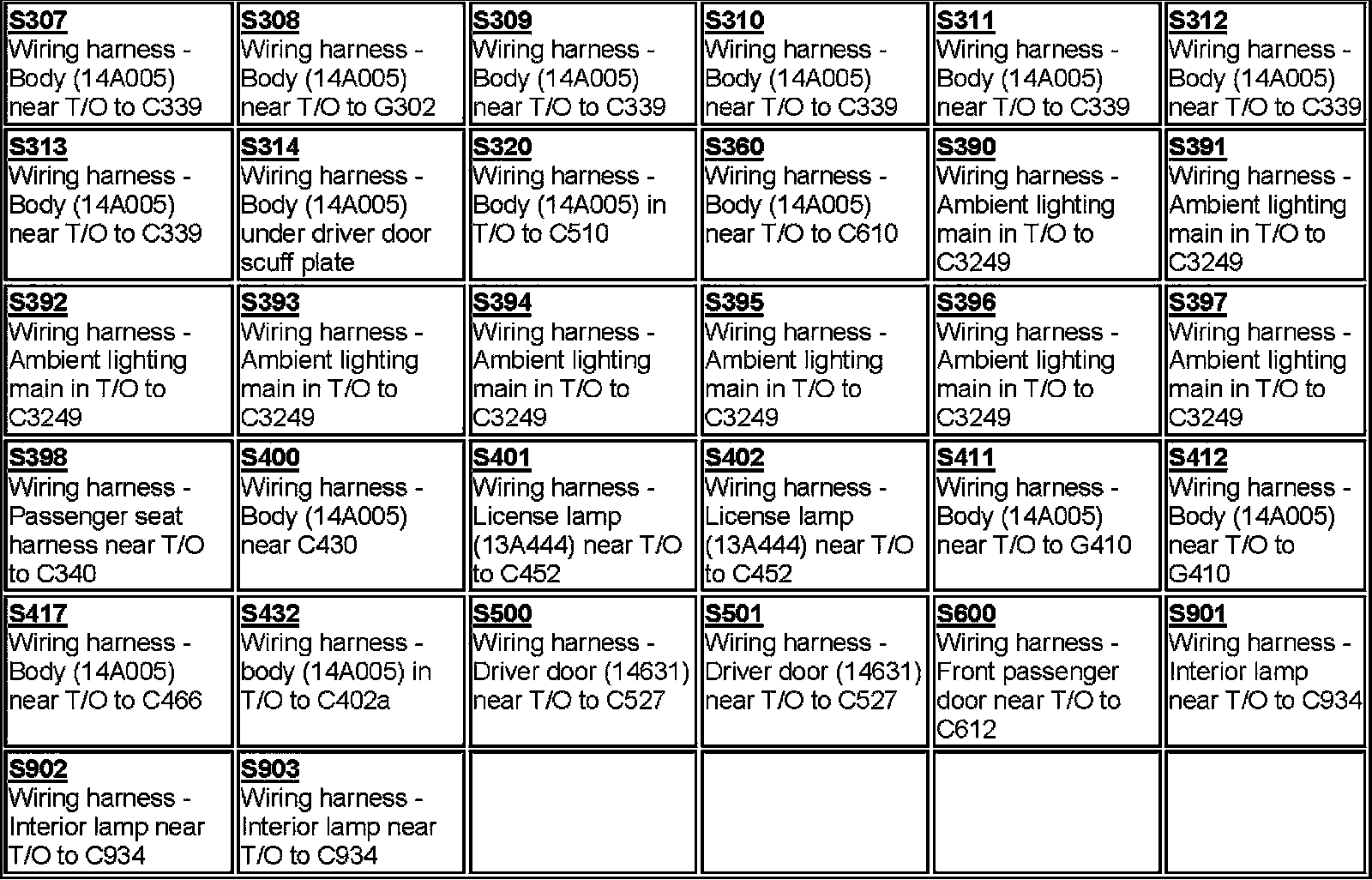

S307-S903:
