Expansion Valve: Service and Repair

Thermostatic Expansion Valve

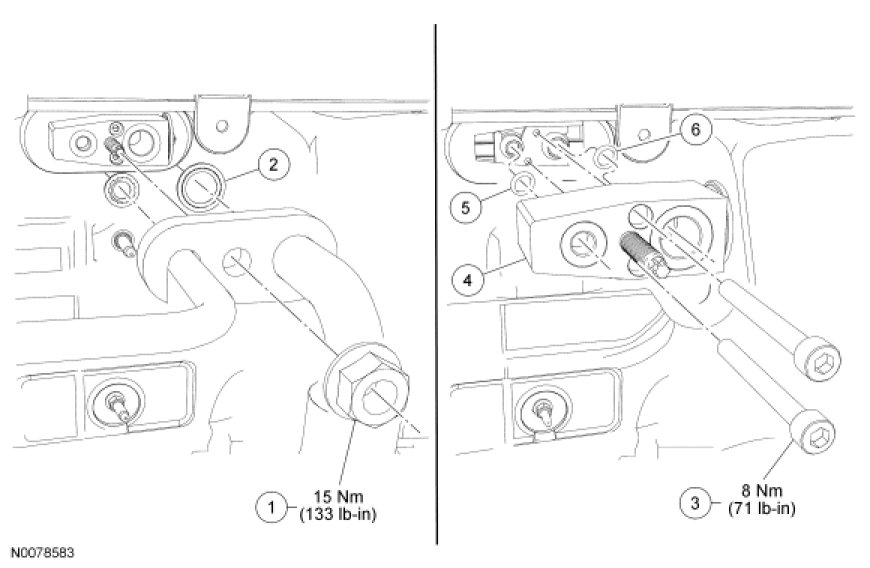

Removal and Installation

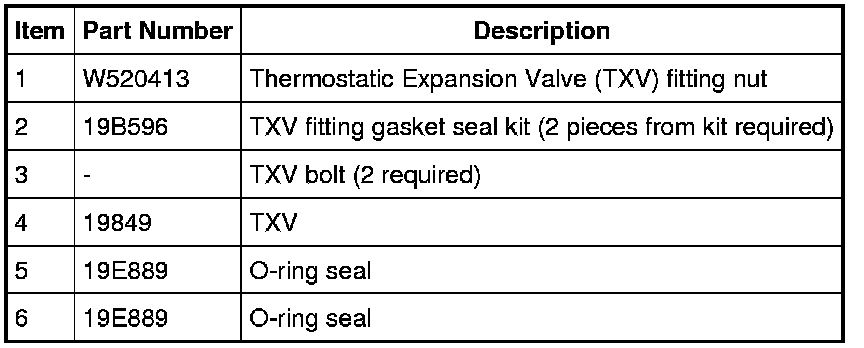

1. Remove the Thermostatic Expansion Valve (TXV) fitting nut and disconnect the fitting.
- Discard the gasket seals.

- To install, tighten to 15 Nm (133 lb-in).

2. Remove the 2 TXV bolts.
- To install, tighten to 8 Nm (71 lb-in).

3. Remove the TXV.
- Discard the O-ring seals.

4. To install, reverse the removal procedure.
- Install new O-ring seals and gasket seals.

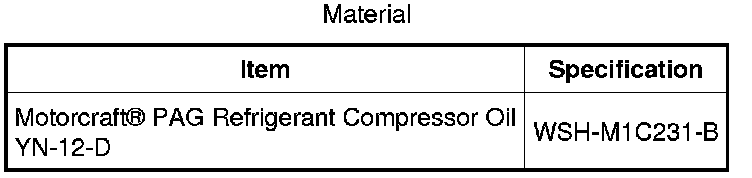

- Lubricate the refrigerant system with the correct amount of clean PAG oil. For additional information, refer to Climate Control System - General Information and Diagnostics Specifications.
