Instrument Cluster / Carrier: Locations

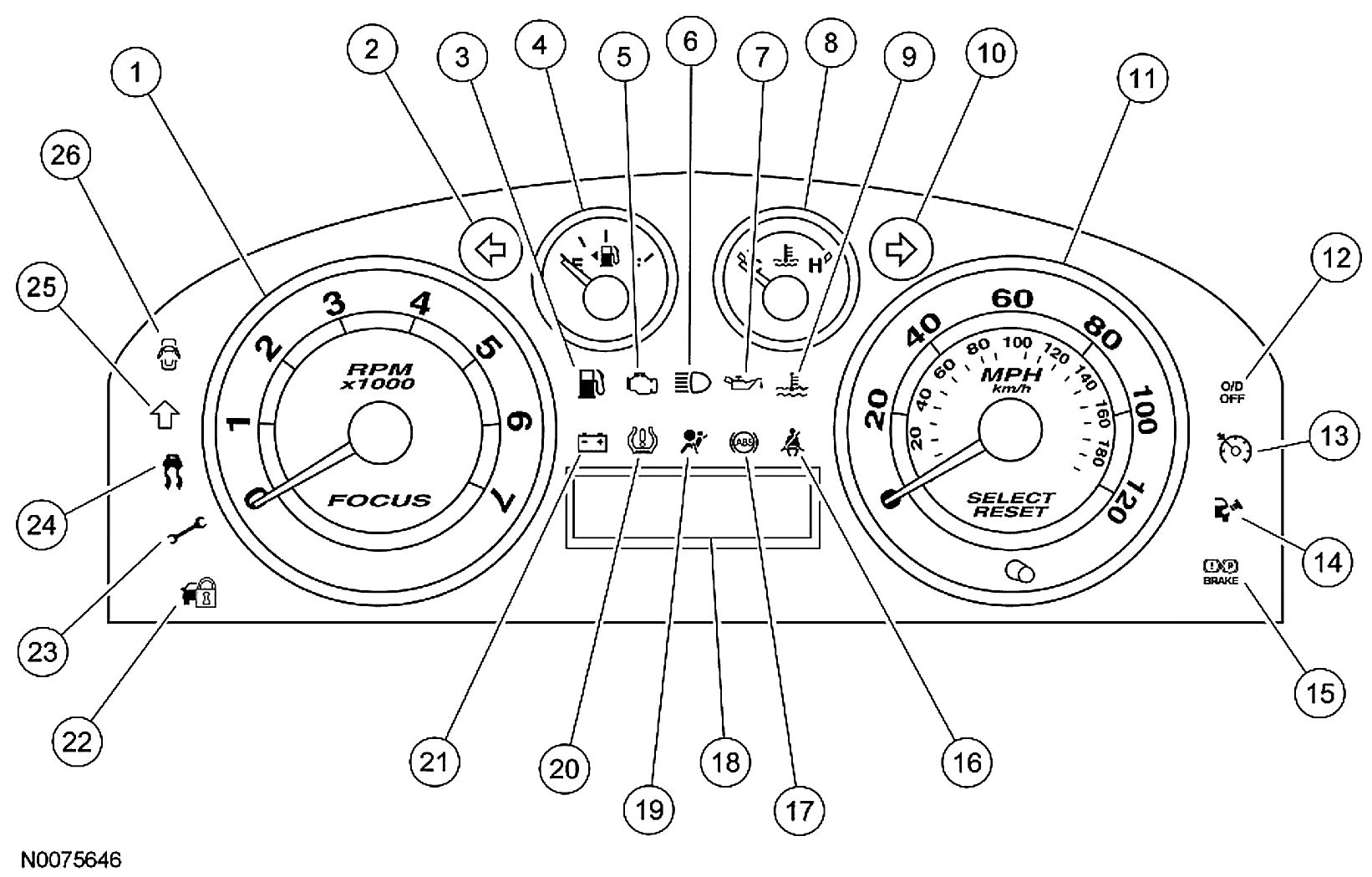

Instrument Cluster:

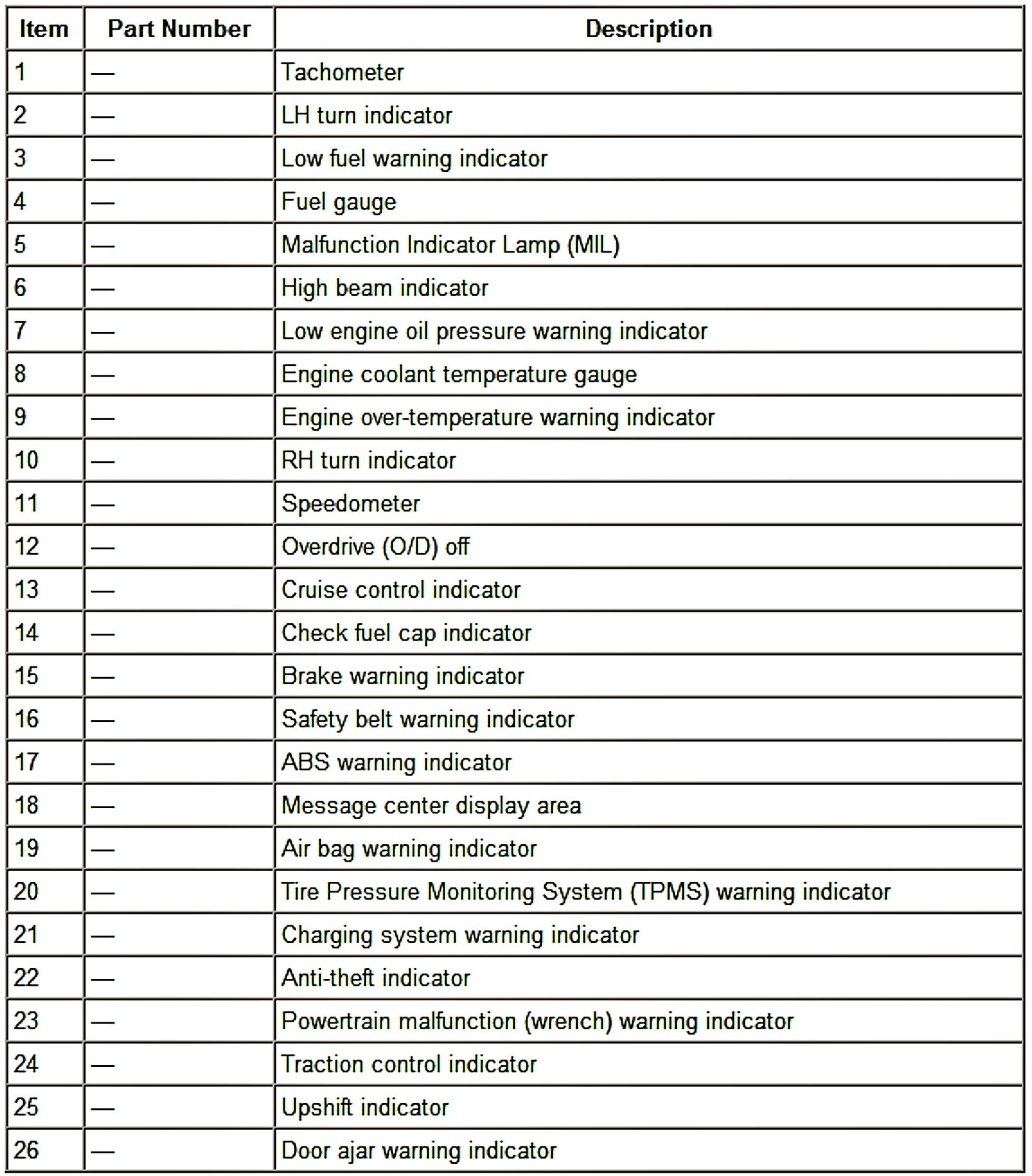

1 - 26:

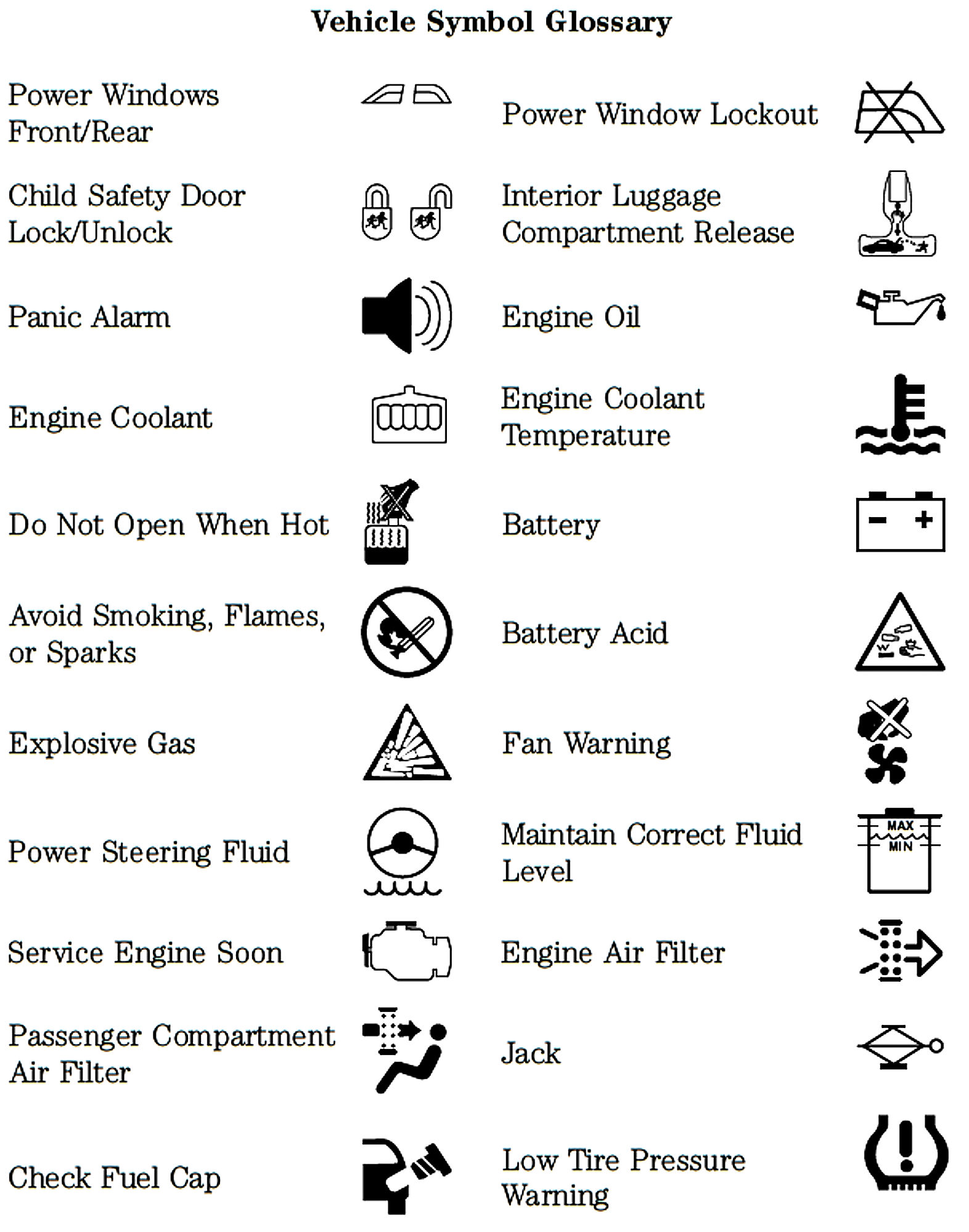

Vehicle Symbol Glossary 1:

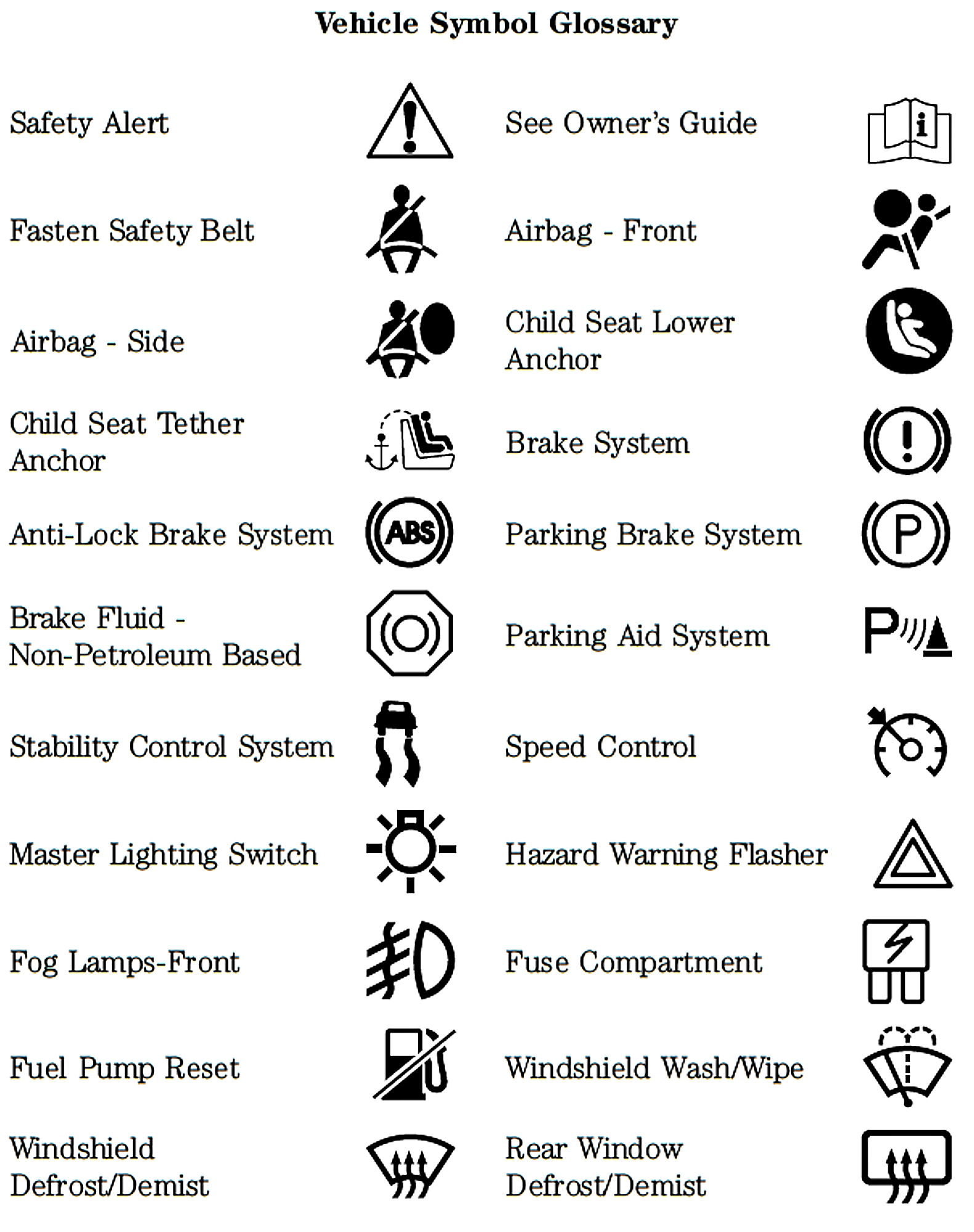

Vehicle Symbol Glossary 2:





Instrument Cluster:
