License Plate Lamp: Service and Repair

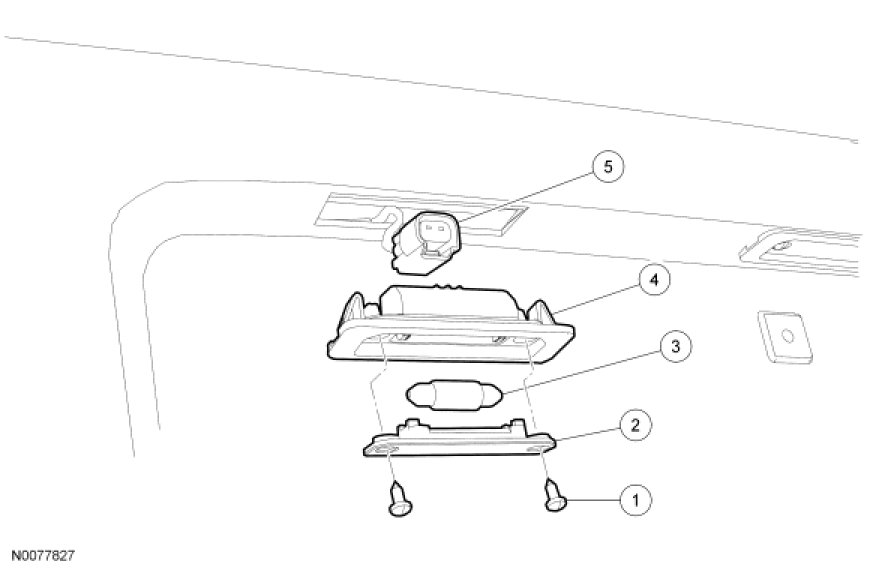

License Plate Lamp









Removal and Installation

NOTE: The license plate lamp does not need to be removed to access the bulb.

1. Remove the rear bumper cover. For additional information, refer to Bumpers Service and Repair.

2. Disconnect the license plate lamp electrical connector.

3. Release the 2 outboard tabs and remove the license plate lamp from the rear bumper cover.

4. To install, reverse the removal procedure.
