Plenum Chamber

Plenum Chamber

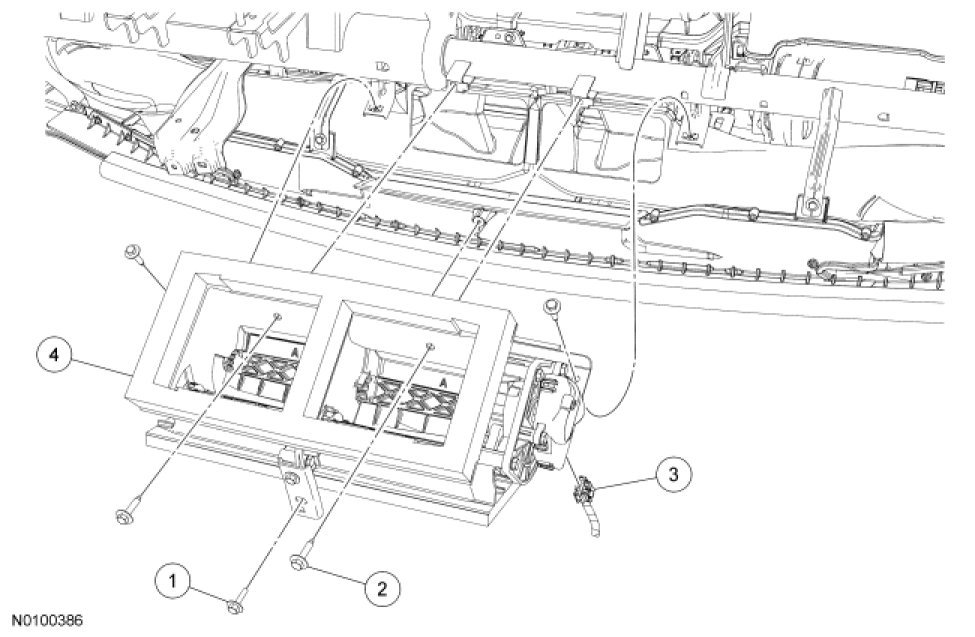

Removal and Installation

1. Remove the instrument panel. For additional information, refer to Instrument Panel and Console Instrument Panel.

2. Remove the plenum chamber bracket screw.

3. Remove the 4 plenum chamber screws.

4. Disconnect the panel/floor door mode door actuator electrical connector.

5. Remove the plenum chamber.

6. To install, reverse the removal procedure.
