Fuel Pump Control Unit: Service and Repair

Fuel Pump Control Module









Removal and Installation

NOTE: The Fuel Pump Control Module (FPCM) is located in the spare tire stowage compartment.

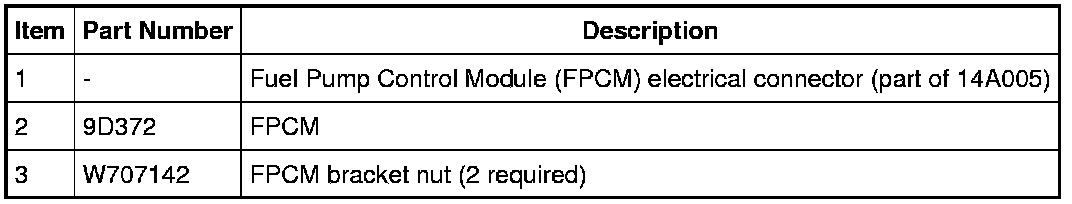

1. Disconnect the FPCM electrical connector.

2. Remove the 2 nuts and the FPCM.
- To install, tighten to 8 Nm (71 lb-in).

3. To install, reverse the removal procedure.
