Low/Reverse Clutch Assembly

Low/Reverse Clutch Assembly









Low/Reverse Clutch Assembly









Disassembly

NOTICE: The low/reverse clutch plate quantity is model dependent on engine size. Check the clutch plate quantity charts in specifications for the correct clutch plate quantity. Failure to install the correct clutch plate quantity will result in transmission failure.

NOTE: The low/reverse clutch plates are installed in the case during the transmission assembly procedure.

1. Using the Clutch Spring Compressor, remove and discard the low/reverse clutch return spring retainer.





2. Remove and discard the low/reverse clutch return spring retainer.





3. Remove the low/reverse clutch return spring.

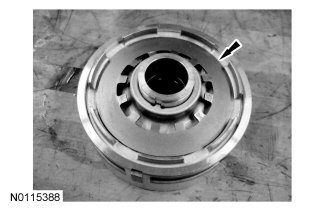

4. Apply a slight amount of air to the port, remove the low/reverse clutch piston from the low/reverse clutch drum.





5. Remove and discard the low/reverse outer piston O-ring seal.





6. Remove and discard the low/reverse drum O-ring seal.





Assembly

Low/reverse piston

1. Install new low/reverse outer piston O-ring seal.





2. Install new low/reverse drum O-ring seal.

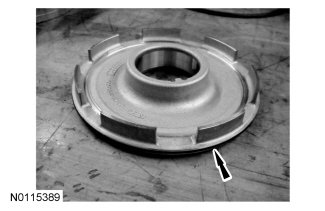

3. Lubricate the O-ring seal with clean transmission fluid. Align the alignment tab on the piston with the groove in the center support and install the low/reverse piston.





4. Install the low/reverse clutch return spring.





5. Install a new low/reverse clutch return spring retainer. Align the alignment tab on the retainer with the groove in the center support and install the low/reverse piston return spring retainer.





6. Using the Clutch Spring Compressor, compress the low/reverse clutch return spring and install the retaining ring.





Low/reverse clutch stackup

7. NOTE: All low/reverse clutch plates, friction and steel are of a wave-type design.

Install the D-Clutch Measurement Gauge into the case.

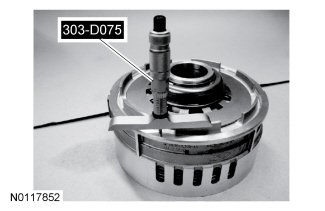

8. With the D-Clutch Measurement Gauge positioned in the case, use the Depth Micrometer to measure the case stop depth.









9. Measure the clutch pack height.









10. Using the Depth Micrometer, measure the piston to center support shoulder height.









11. Calculate the end clearance.





Compare the end clearance to the specification. If the end clearance is out of specification, select the next thinner or thicker plate as required and repeat Steps 10, 11 and 12.
