Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2011
>>
Mustang V8-5.4L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Element
>>

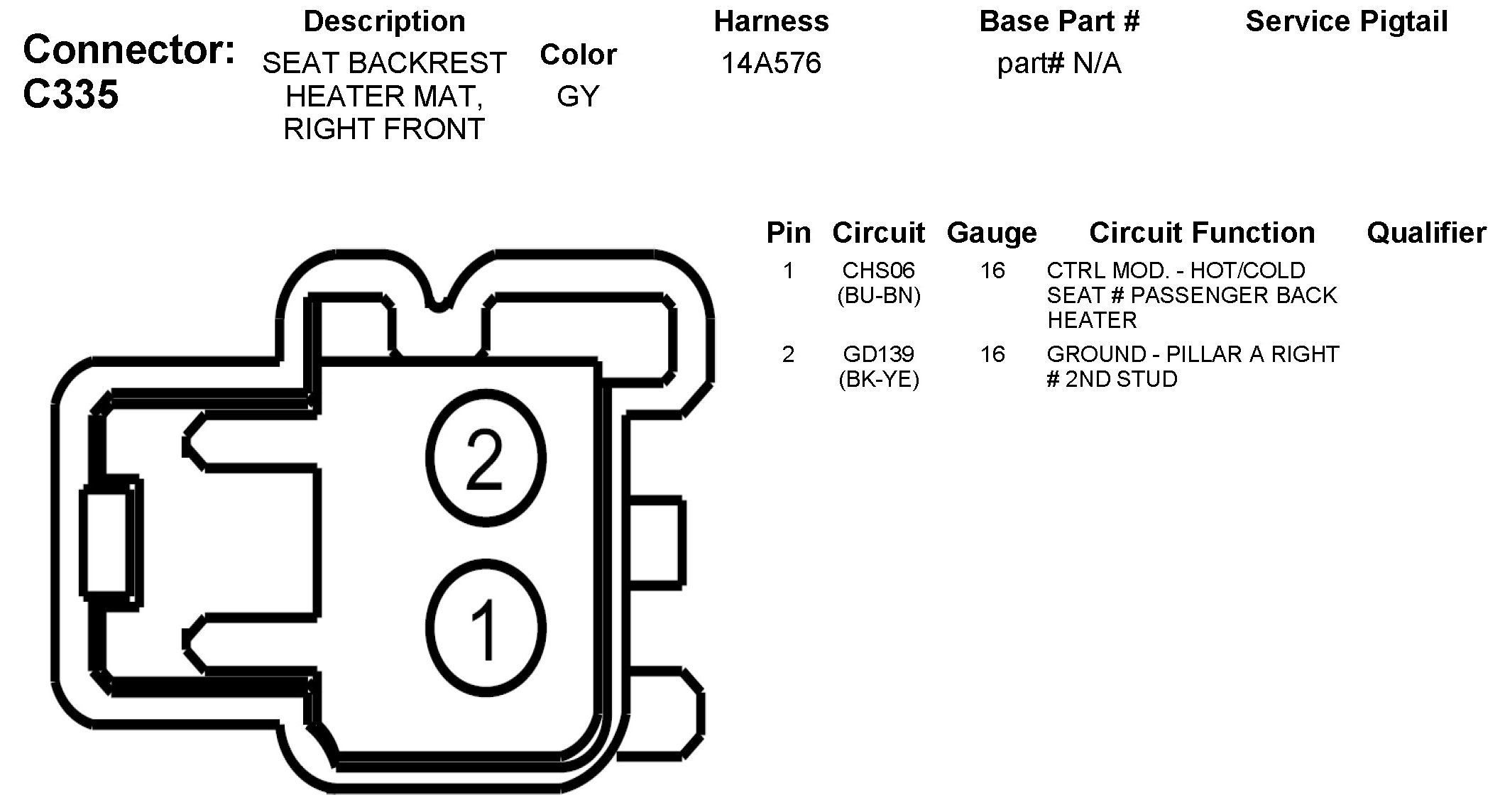

C335 Seat Backrest Heater MAT, Right Front
C335 Seat Backrest Heater MAT, Right Front
