Shift Indicator - A/T: Service and Repair

Selector Lever Indicator Bulb

Removal and Installation

1. Remove the transmission selector lever bezel. For additional information, refer to Automatic Transaxle/Transmission External Controls Selector Lever Bezel.

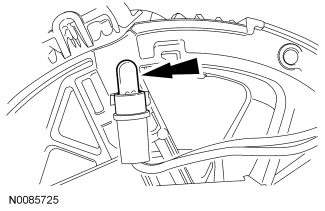

2. Remove the selector lever indicator bulb from the socket.





3. To install, reverse the removal procedure.
