Door Module: Service and Repair

Driver Door Module (DDM)













Removal and Installation

1. NOTE: This step is necessary only if the Driver Door Module (DDM) is being replaced.

NOTE: Prior to the replacement of the module, it is necessary to upload the module configuration information to the scan tool. This information must be downloaded into the new module after installation. For additional information, refer to Module Configuration Testing and Inspection.

Upload the module configuration information from the DDM. For additional information, refer to Module Configuration Testing and Inspection.

2. Remove the LH door trim panel. For additional information, refer to Interior Trim and Ornamentation Service and Repair and Service and Repair.

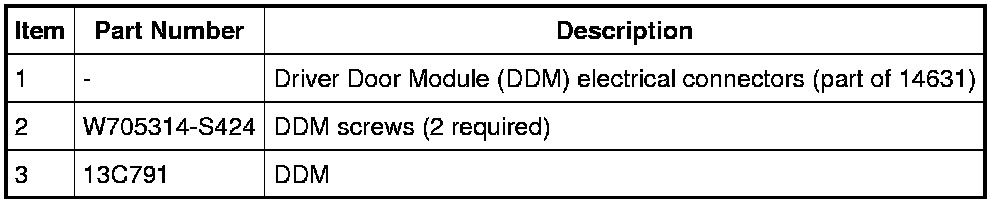

3. Position the water shield aside and disconnect the DDM electrical connectors.

4. Remove the 2 screws and the DDM.

5. To install, reverse the removal procedure.
