Impact Sensor
>>
Diagrams
>>

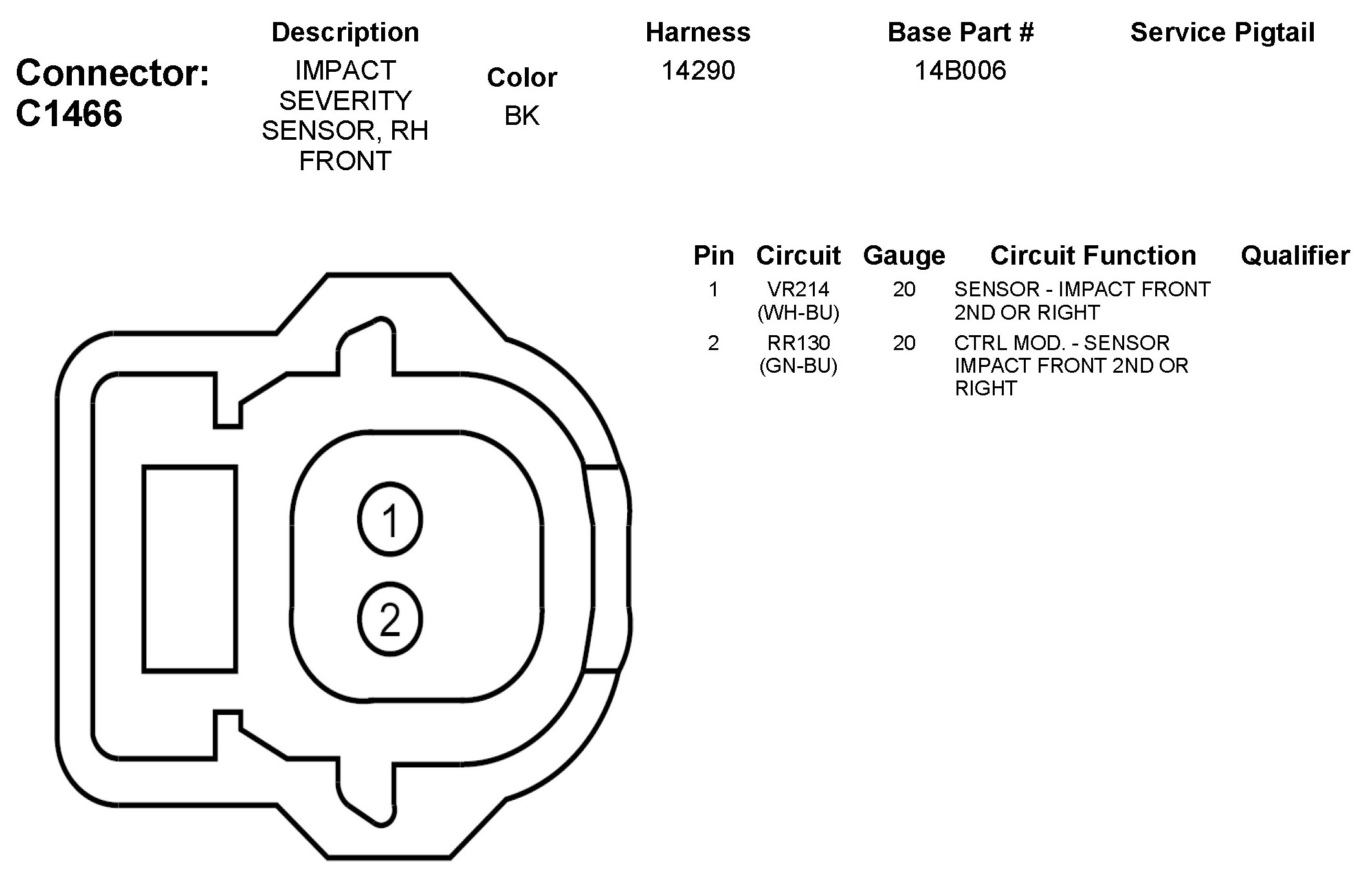

C1466 Impact Severity Sensor, RH Front
C1466 Impact Severity Sensor, RH Front
