High Voltage System Disable / Enable: Service and Repair

High Voltage Battery Disconnect and Connect

WARNING: Never install the service disconnect plug with the high-voltage bussed electrical center (BEC) cover removed. Always install the cover prior to connecting the service disconnect plug. The high-voltage BEC cover prevents inadvertent contact with the high voltage which is present at several points under the cover. Failure to follow these instructions may result in serious personal injury or death.

1. WARNING: Before beginning any service procedure, Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions. Service Precautions

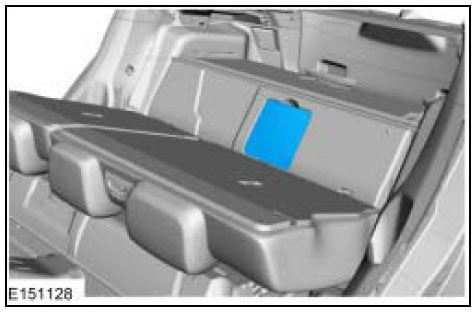

2.







3.







4. Wait 5 minutes after the service disconnect plug is removed before continuing service. This allows any residual voltage in the high-voltage system to dissipate.







1.







2.
