Home >> Ford >> 2012 >> Focus L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Impact Sensor >> Diagrams >> C1465 Impact Severity Sensor, LH Front

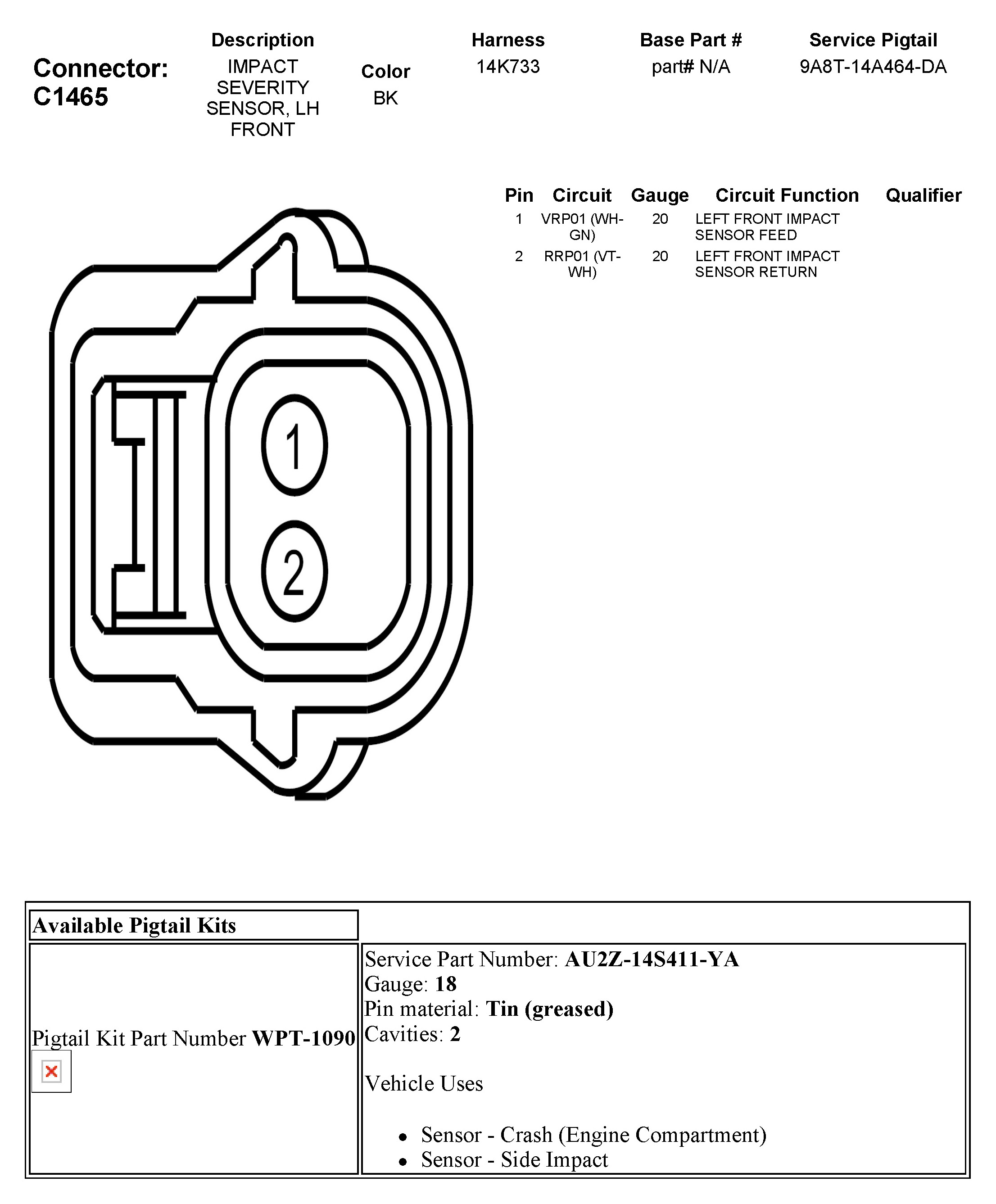

C1465 Impact Severity Sensor, LH Front
