Home
>>
Ford
>>
2012
>>
Mustang V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>

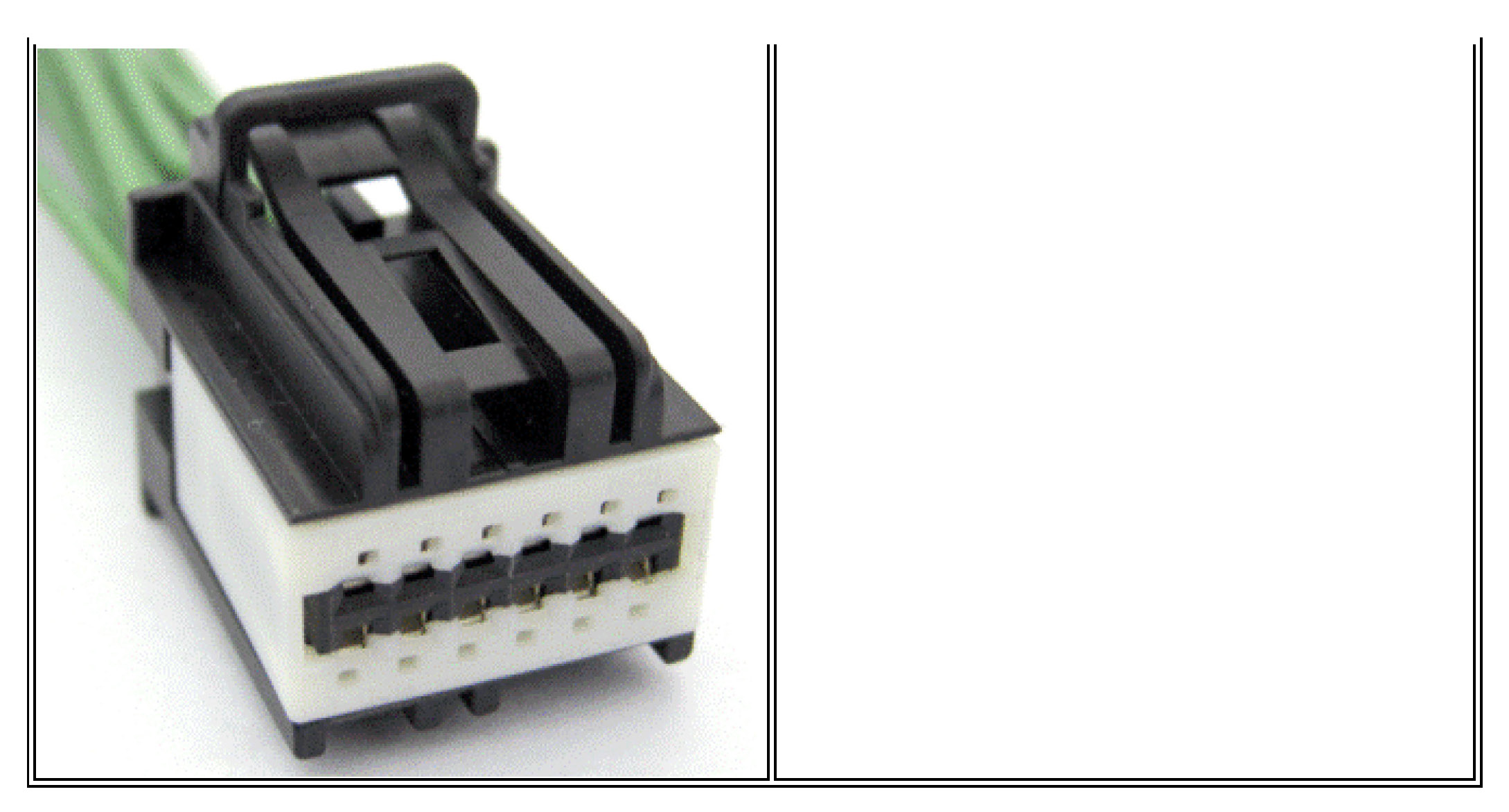

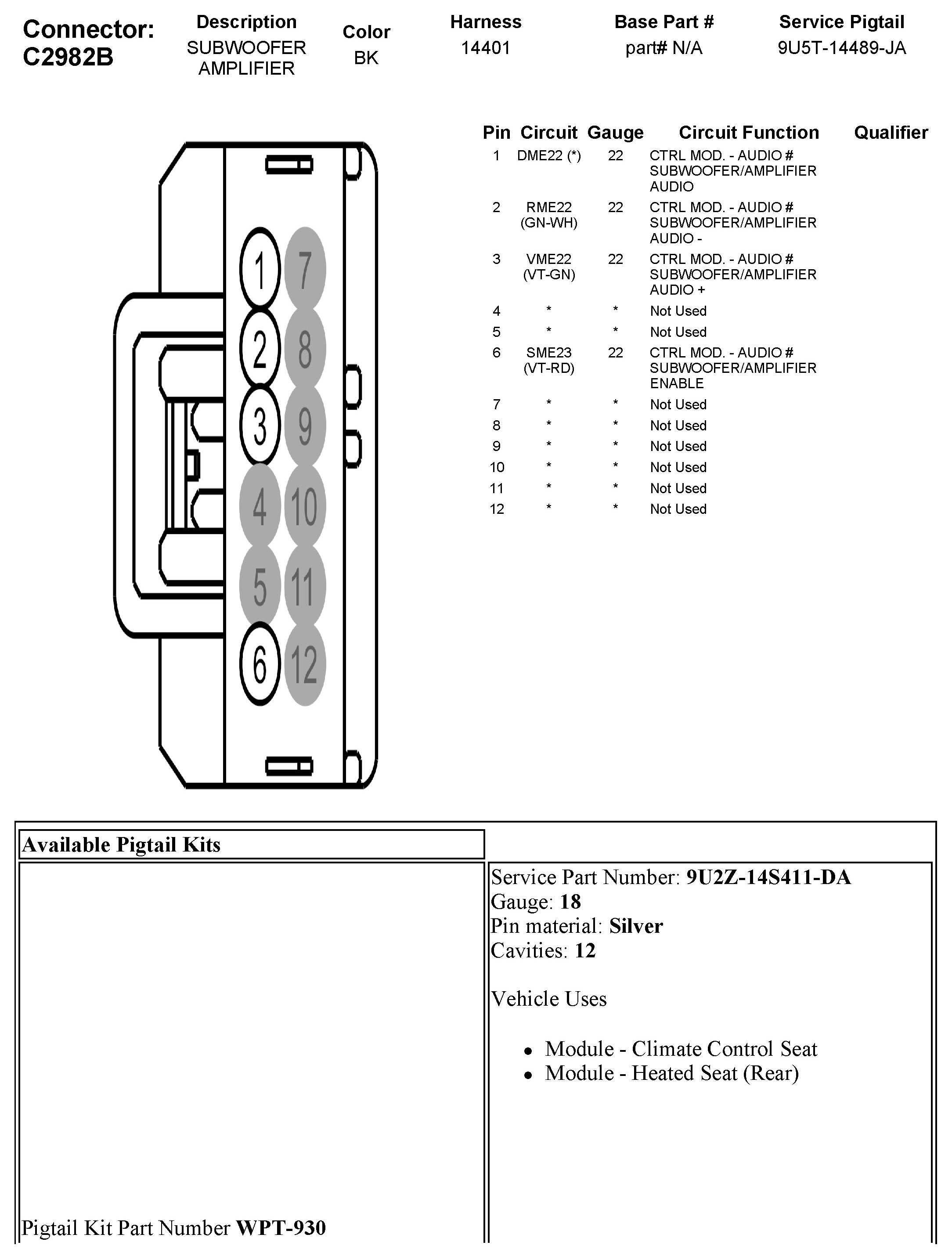

C2982B Subwoofer Amplifier
C2982B Subwoofer Amplifier
