Receiver Dryer: Service and Repair

Receiver Drier













Removal and Installation

NOTE: Installation of a new receiver/drier is not required when repairing the A/C system, except when there is physical evidence of contamination from a failed A/C compressor or damage to the receiver/drier. Damage to the receiver/drier includes leaks in the receiver/drier, physical damage to the receiver/drier shell or desiccant, or moisture contamination. Moisture contamination results only from a complete loss of refrigerant and equalization of the refrigerant system pressure with atmospheric pressure for a period longer than one hour. If even a slight amount of positive refrigerant pressure is present in the system before repairs are carried out, the receiver/drier should not be replaced.

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Recover the refrigerant.

3. Remove the lower radiator air deflector.

4. Remove the receiver/drier bolt.
- To install, tighten to 9 Nm (80 lb-in).


5. Remove the receiver/drier.
- Discard the receiver/drier fitting O-ring seals.


6. To install, reverse the removal procedure.
- Install new O-ring seals.

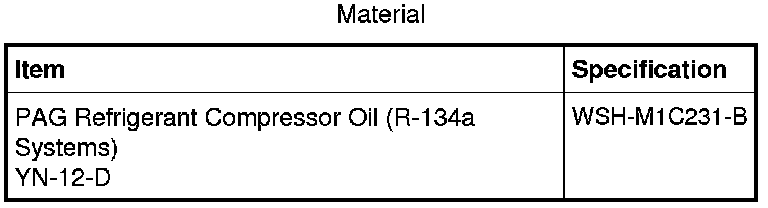

- Add the correct amount of clean PAG oil to the refrigerant system.


7. Evacuate, leak test and charge the refrigerant system.
