Transmission Cooling

Transmission Cooling

Vehicles with automatic transmissions are equipped with a transmission fluid cooler. The transmission fluid cooler transfers heat from the transmission fluid to the ambient air.

For Transmission Fluid Cooler Backflushing and Cleaning, refer to Automatic Transmission/Transaxle &/or Transmission Control Systems.

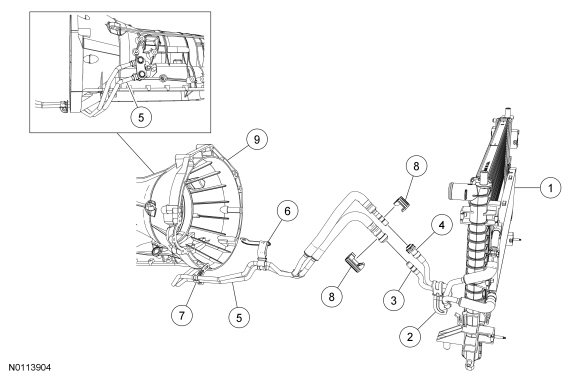

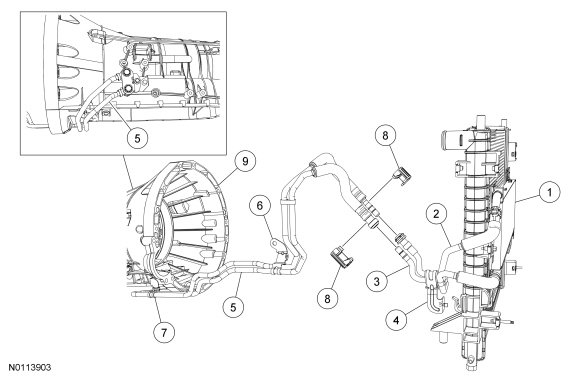

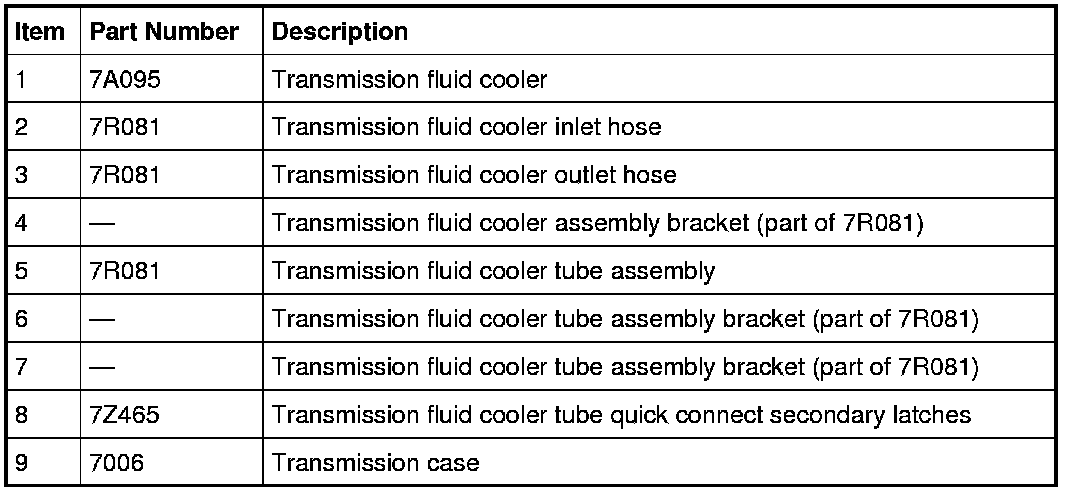

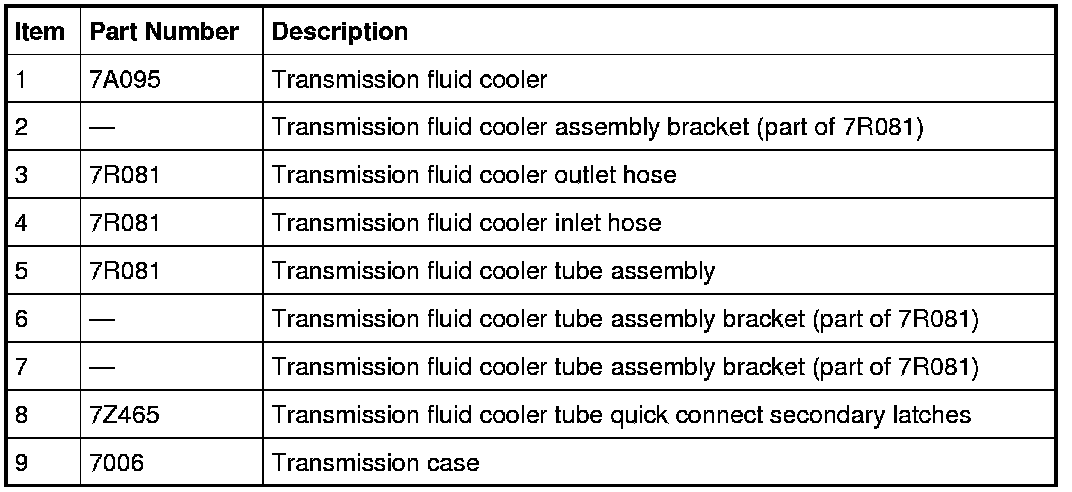

Transmission Fluid Cooler Tubes (5.0L Engine)
