Mechanical Specifications

General Specifications

Gear Ratio Chart

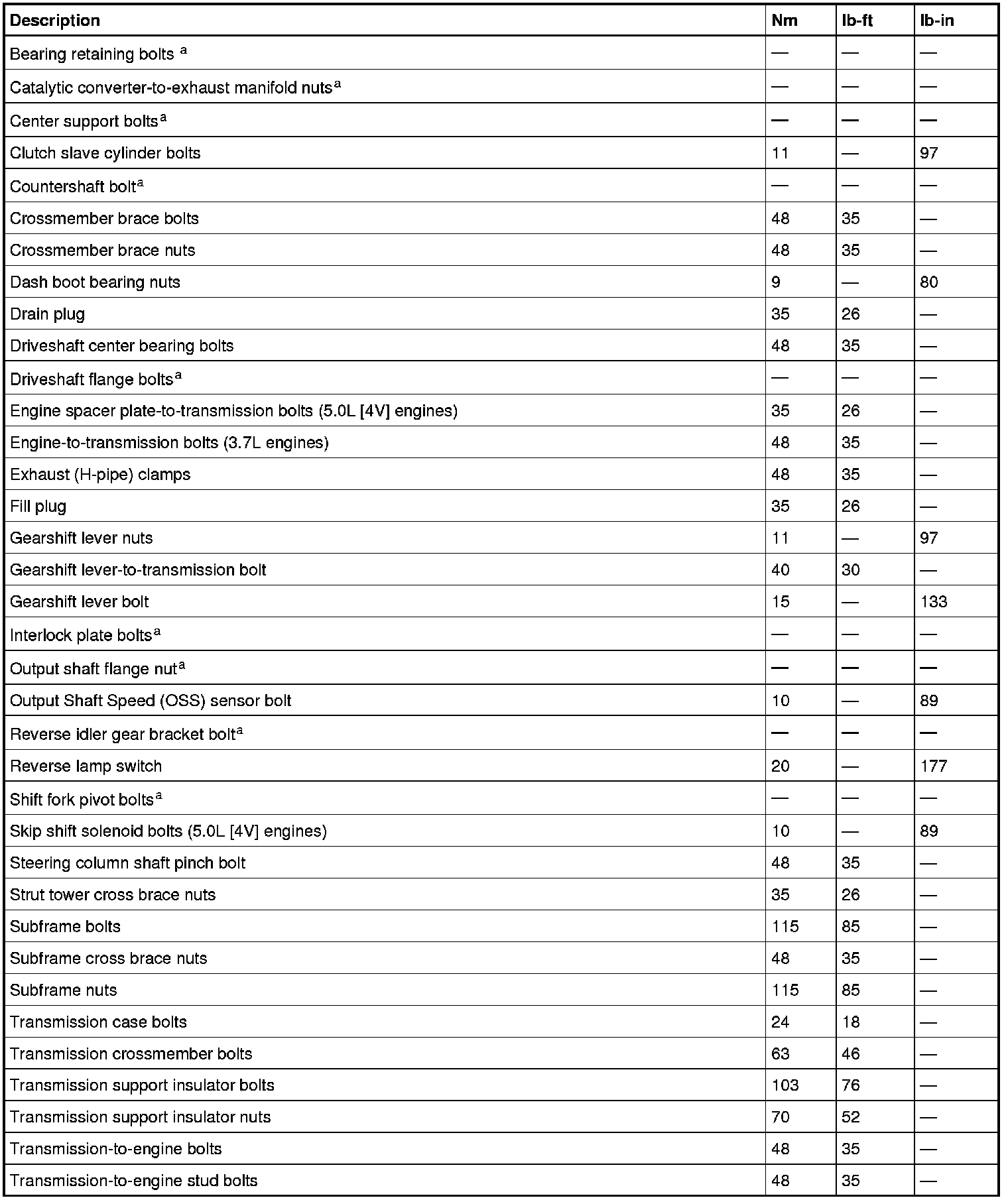

Torque Specifications

a Refer to procedure in Manual Transmission/Transaxle.
