Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2012
>>
Taurus AWD V6-3.5L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Occupant Sensor
>>

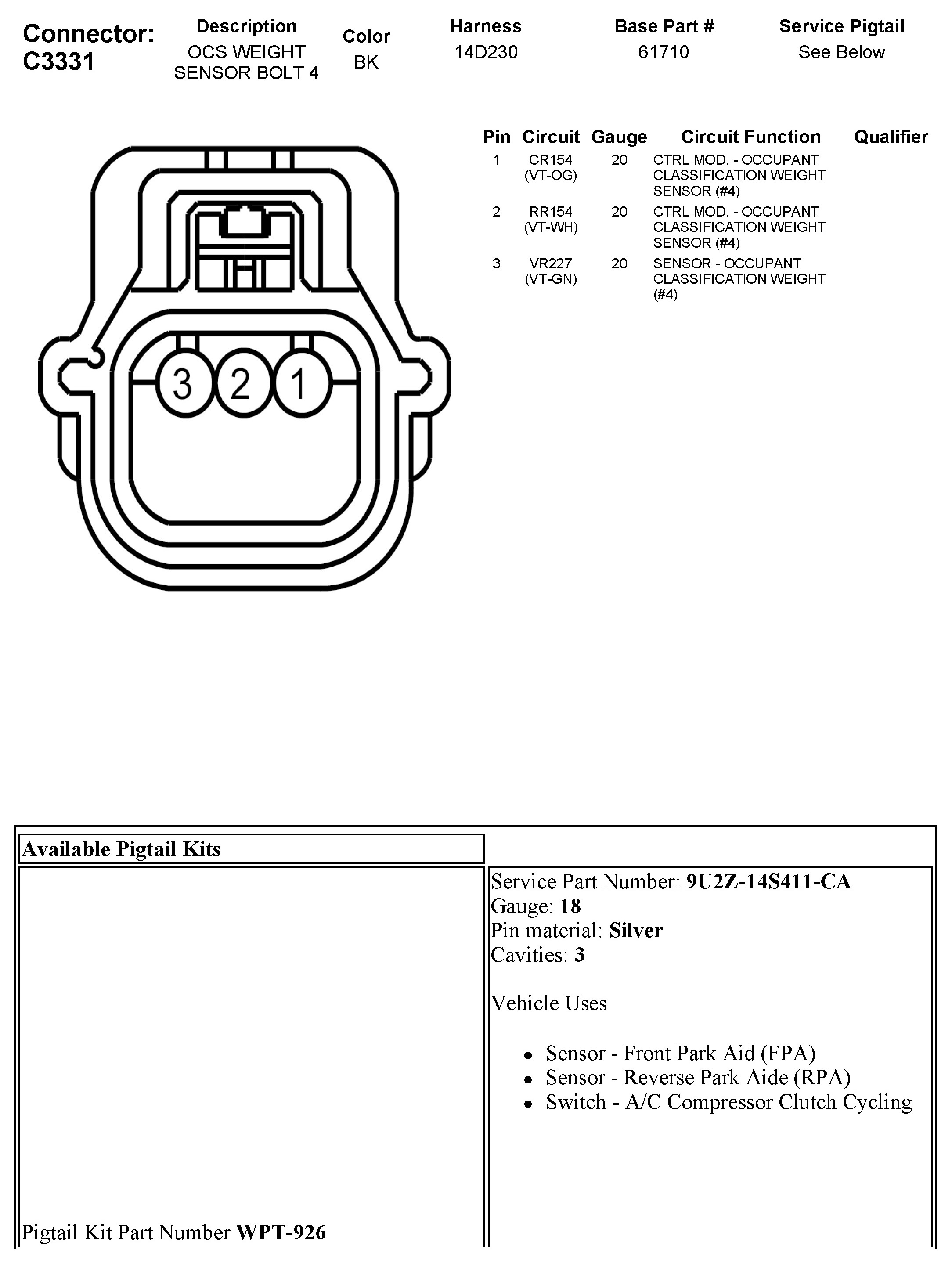

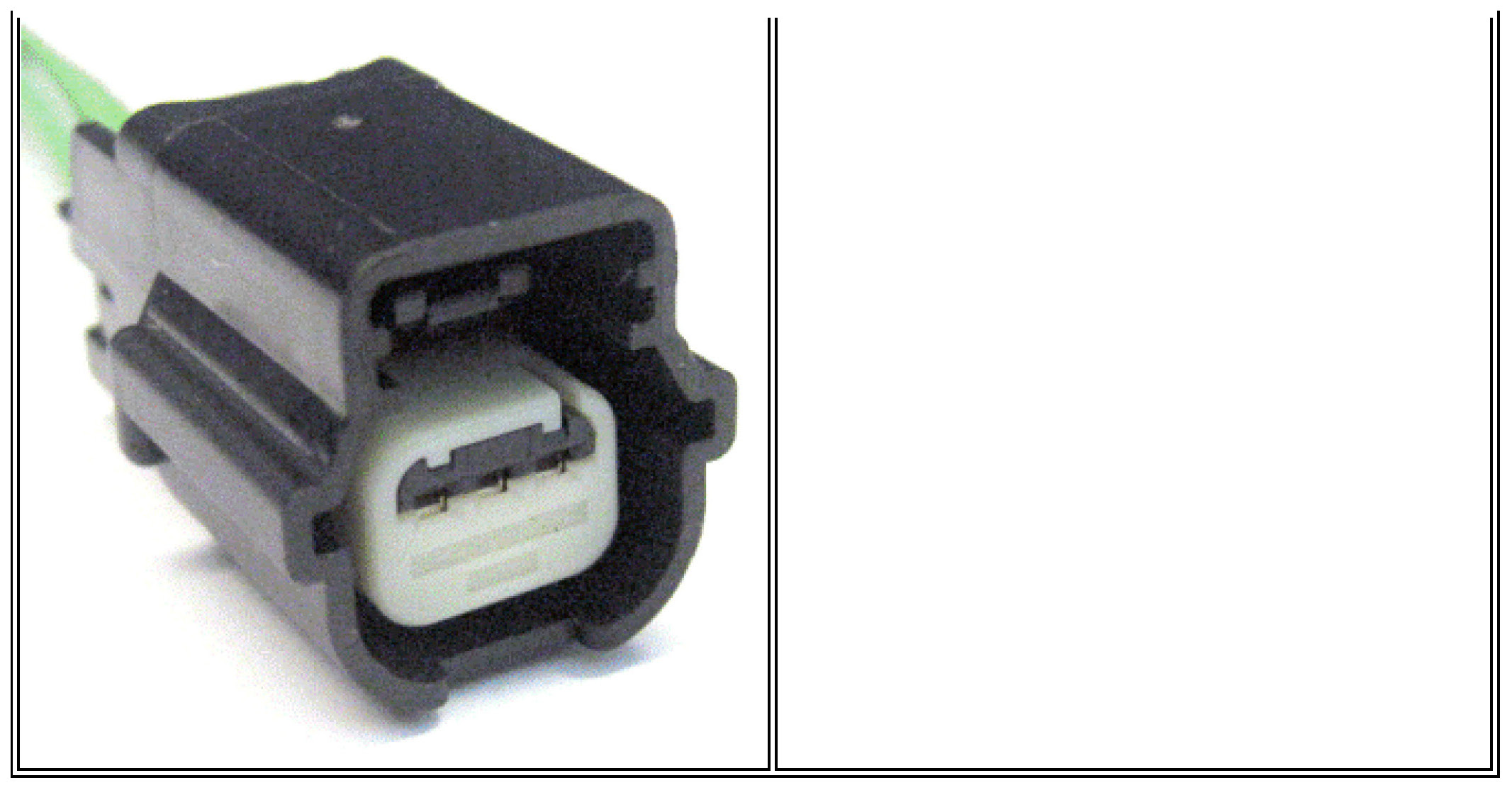

C3331 OCS Weight Sensor Bolt 4
C3331 OCS Weight Sensor Bolt 4
