Home
>>
Ford
>>
2012
>>
Taurus AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag
>>

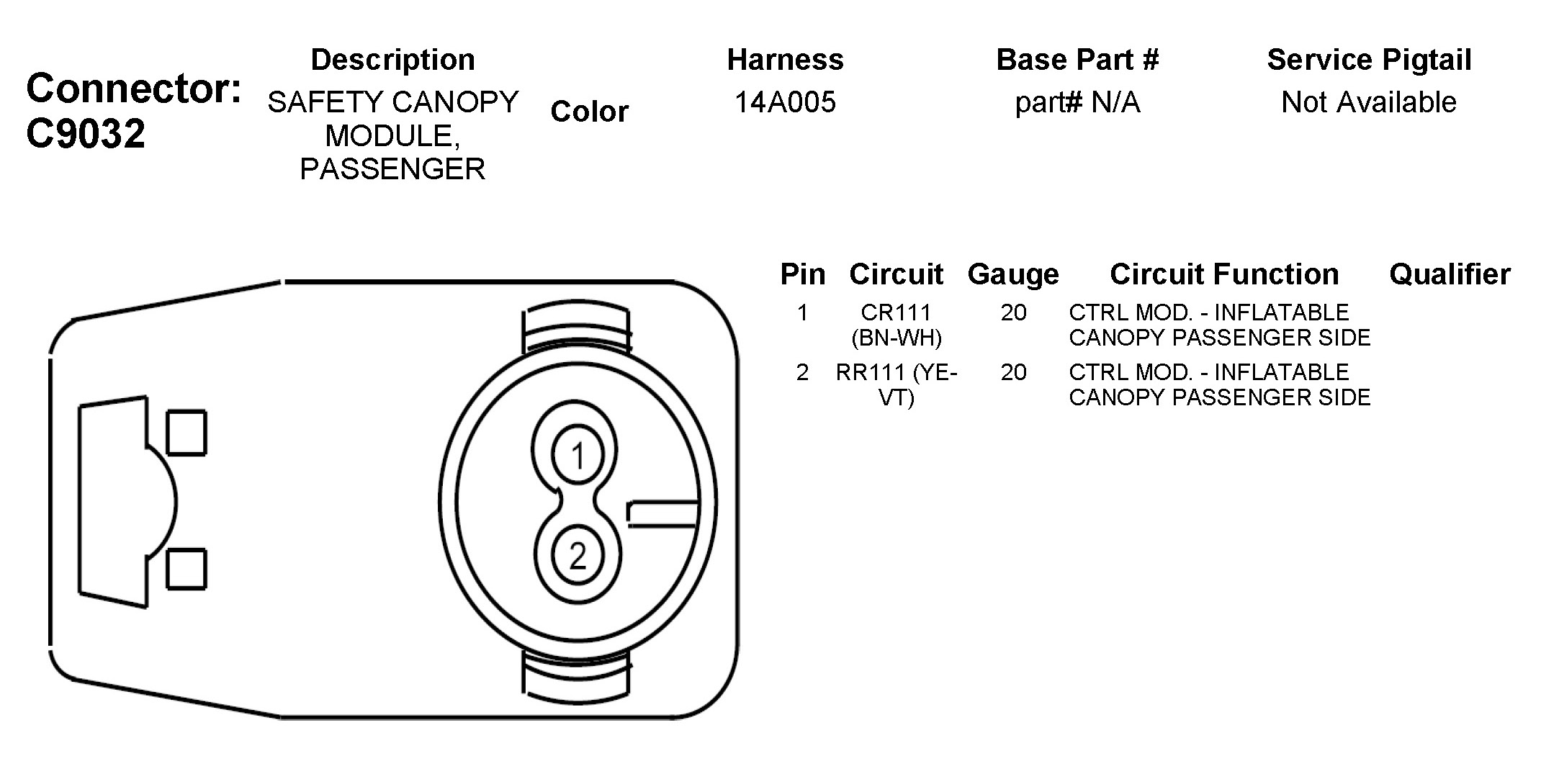

C9032 Safety Canopy Module, Passenger
C9032 Safety Canopy Module, Passenger
