Ford
>>
2012
>>
Taurus AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Switch
>>

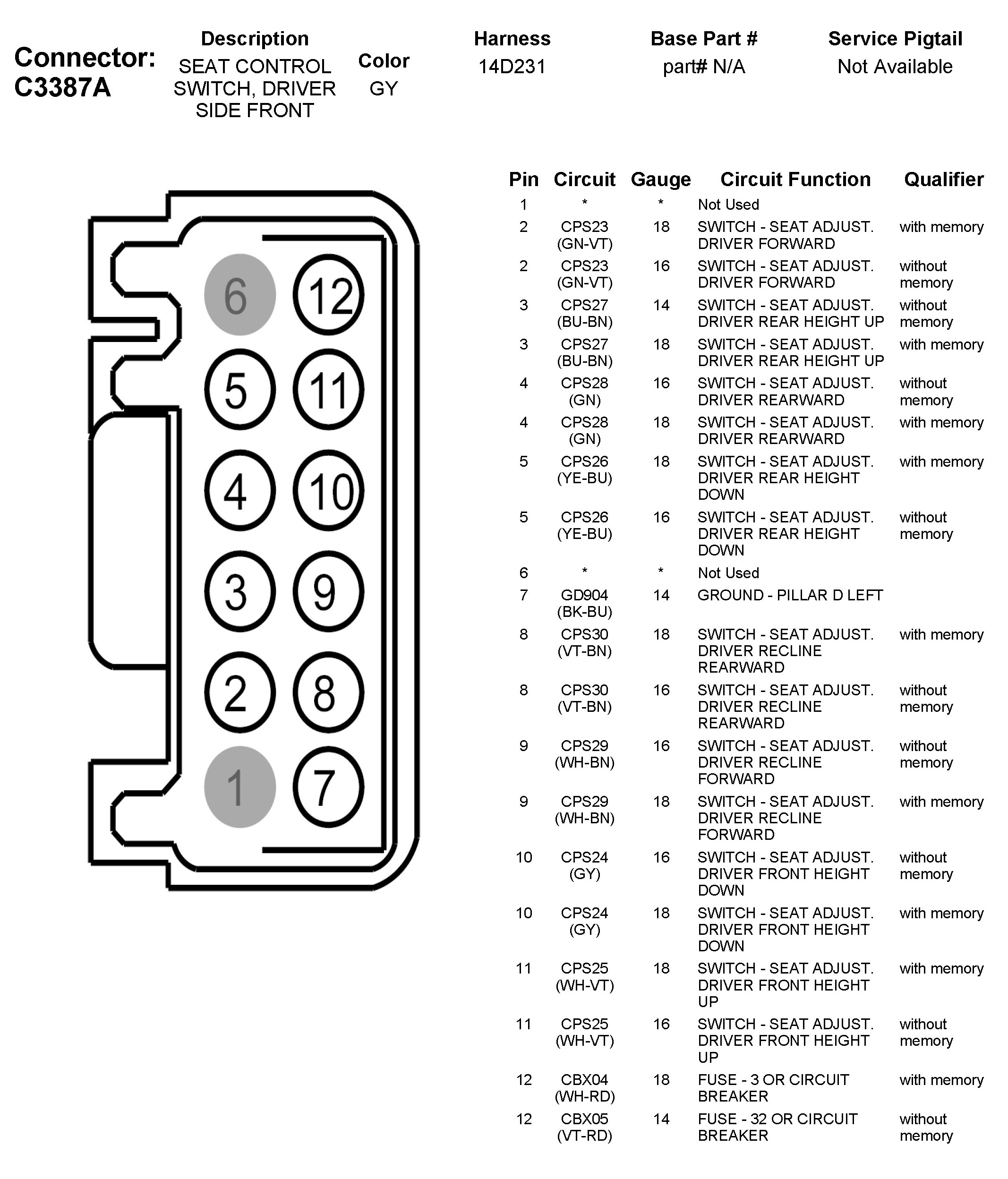

C3387A Seat Control Switch, Driver Side Front
C3387A Seat Control Switch, Driver Side Front
