Home
>>
Ford
>>
2012
>>
Taurus FWD V6-3.5L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Multiple Junction Connector
>>
Diagrams
>>

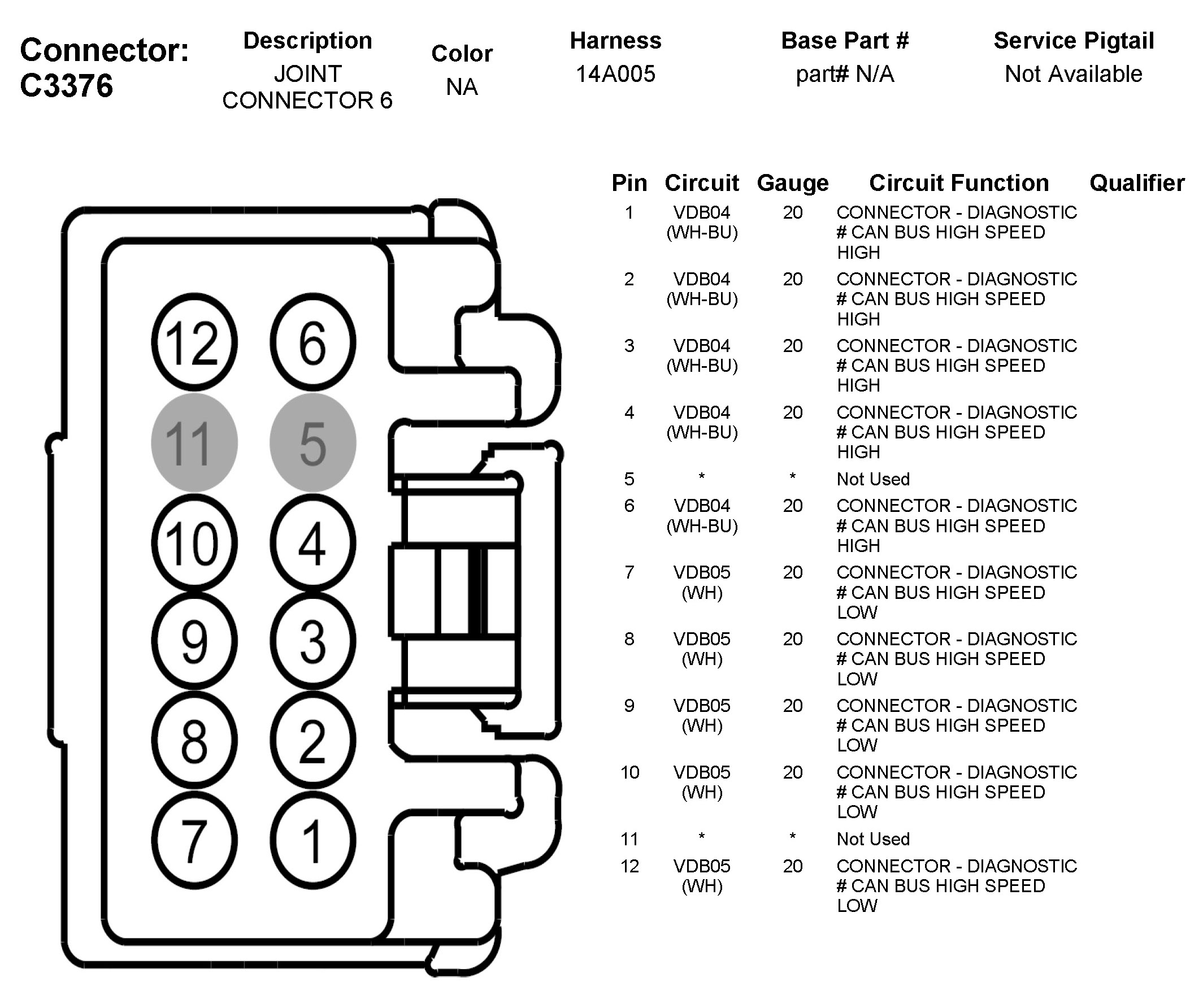

C3376 Joint Connector 6
C3376 Joint Connector 6
