Cabin Air Filter / Purifier: Service and Repair

Cabin Air Filter






Removal and Installation

1. Remove the RH cowl vent screen.

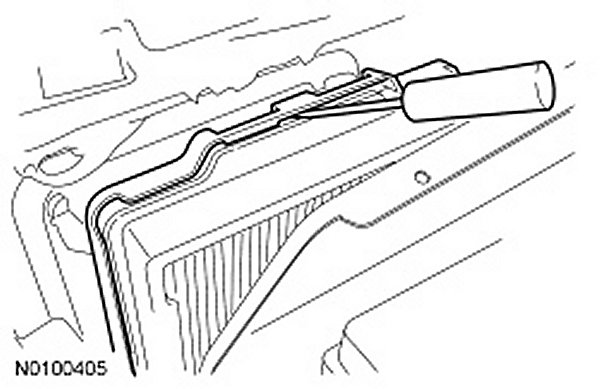

2. Using a suitable tool, detach the cabin air filter housing from the fresh air inlet duct.

3. Remove the cabin air filter housing.

4. Remove the cabin air filter.

5. To install, reverse the removal procedure.
