Engine - Accessory Drive Belt Squeal/Chirp
TSB 12-7-1107/30/12
3.5L GTDI AND 3.7L ACCESSORY DRIVE BELT
CHIRP OR SQUEAL - BUILT ON OR BETWEEN
1/6/2012 - 5/25/2012
FORD:
2012-2013 Mustang
2012 F-150
ISSUE
2012-2013 Mustang vehicles equipped with 3.7L engine and 2012 F-150 vehicles equipped with a 3.7L or 3.5L GTDI engine, and built on or between 1/6/2012 - 5/25/2012 may exhibit a chirping or squealing noise from the accessory drive belt during idle and acceleration.
ACTION
Follow the service procedure to correct the condition.
SERVICE PROCEDURE
1. Determine vehicle build date.
a. Vehicle build date is on or between 1/6/2012 - 5/25/2012, proceed to Step 2.
b. Vehicle build date is not on or between 01/06/2012 - 05/25/2012, refer to Workshop Manual (WSM), Section 303-05 for normal diagnostics.
2. Replace accessory drive belt and accessory drive belt tensioner. Refer to WSM, Section 303-05.

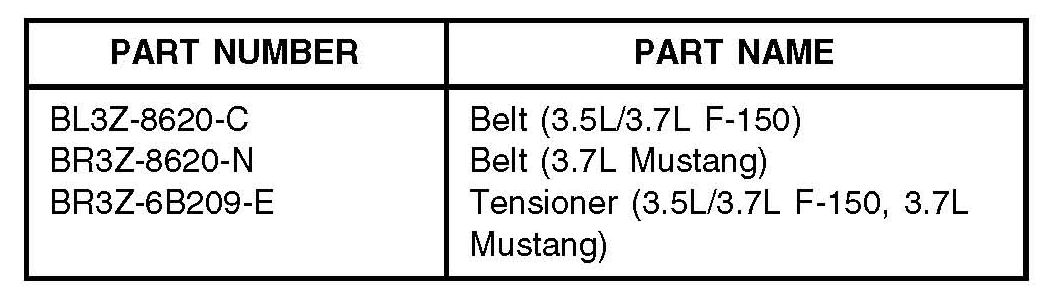

Parts Block
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.
OPERATION DESCRIPTION TIME
120711A 2012-2013 Mustang 3.7L: 0.3 Hr.
Inspect Vehicle Build Date
And Replace The
Accessory Drive Belt And
Tensioner (Do Not Use
With Any Other Labor
Operations)
120711A 2012 F-150 3.5L/3.7L: 0.4 Hr.
Inspect Vehicle Build Date
And Replace The
Accessory Drive Belt And
Tensioner (Do Not Use
With Any Other Labor
Operations)
DEALER CODING
CONDITION
BASIC PART NO. CODE
6B209 01
