B1043

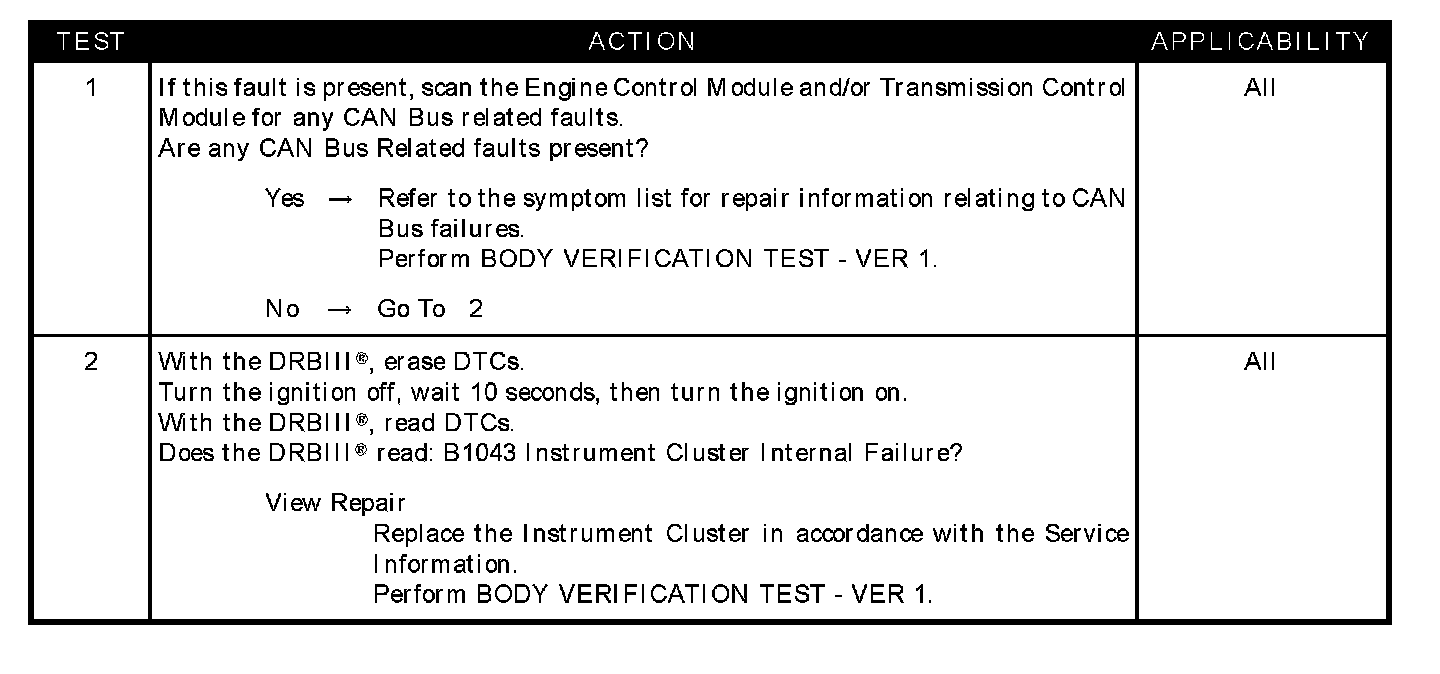

Test 1 - 2:






SYMPTOM
INSTRUMENT CLUSTER INTERNAL FAILURE B1043

POSSIBLE CAUSES
- CAN BUS failure
- Instrument cluster
