Auxiliary Heater Element
Auxiliary Heater Element

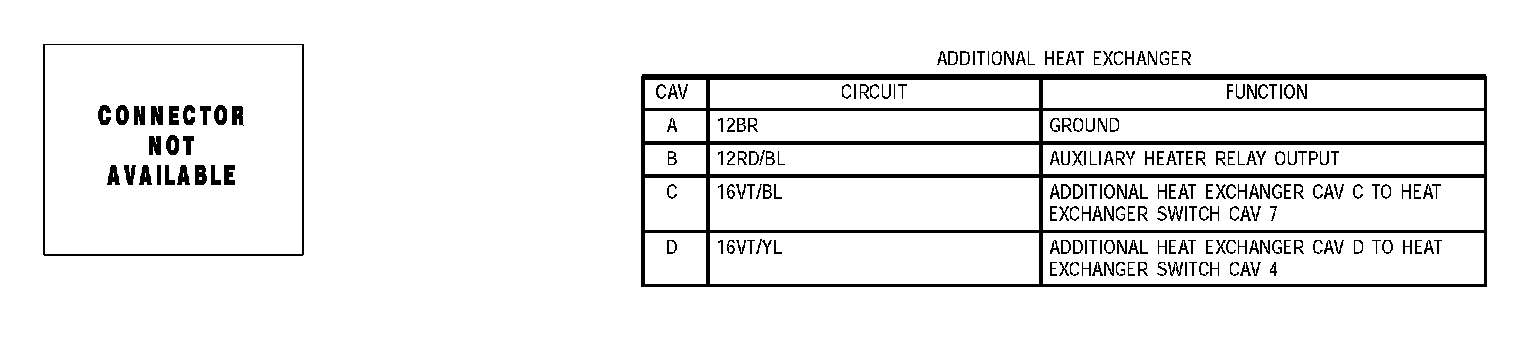

Additional Heat Exchanger:

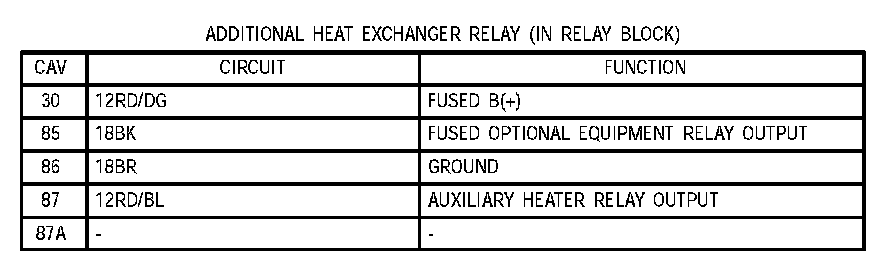

Additional Heat Exchanger Relay:
Additional Heat Exchanger Switch:
