Home >> Freightliner Truck >> 2005 >> Sprinter 3500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Accelerator Pedal Position Sensor

Accelerator Pedal Position Sensor

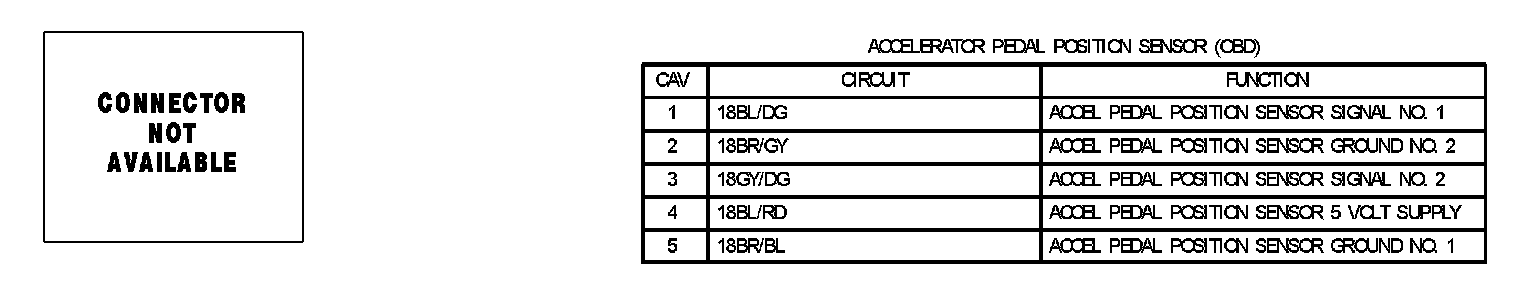

Accelerator Pedal Position Sensor (OBD):

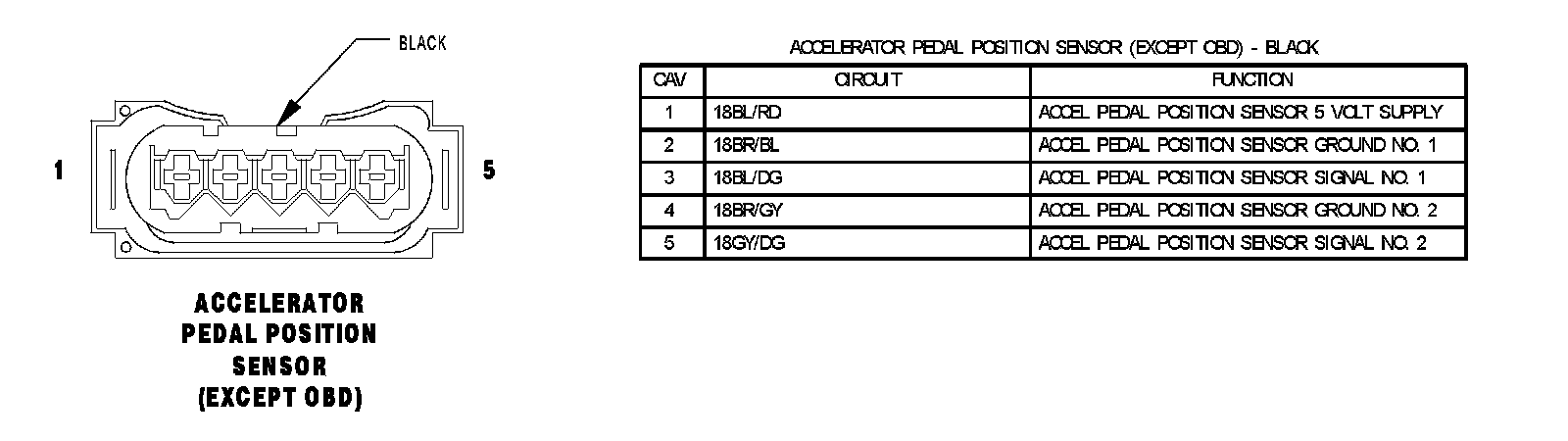

Accelerator Pedal Position Sensor (Except OBD):
