Home >> Freightliner Truck >> 2005 >> Sprinter 3500 L5-2.7L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Auxiliary Cabin Heater >> Auxiliary Cabin Heater Control Module

Auxiliary Cabin Heater Control Module

Cabin Heater Module (CHM):

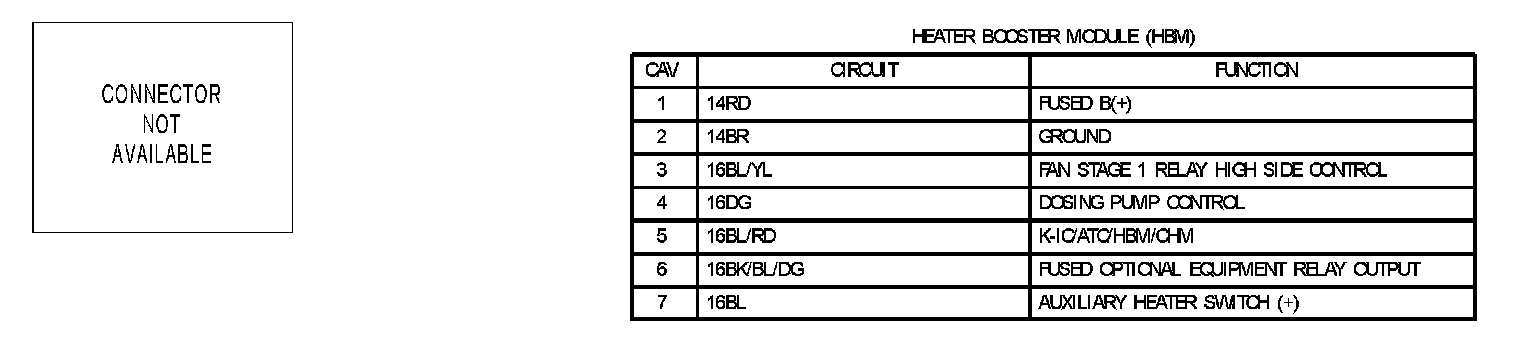

Heater Booster Module (HBM):
